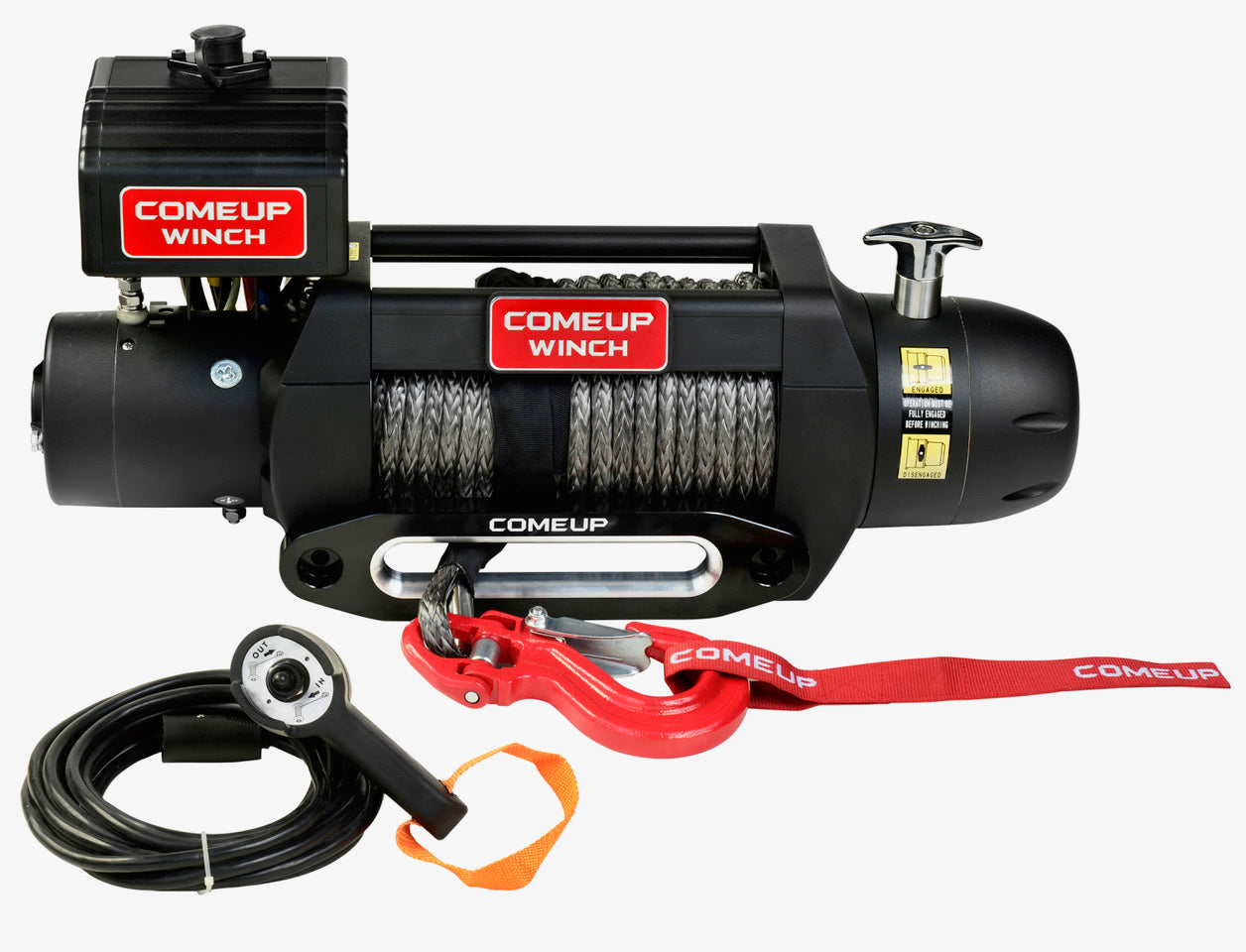

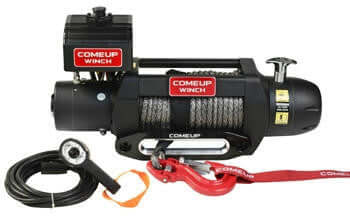

ComeUp Recovery Winch 9500 Lb Seal Gen2 9.5s 12V STD
🚚 Freight delivery Australia-wide
⚡ Express delivery available
🏬 Free pickup from our Moorabbin (VIC) store
ComeUp Recovery Winch 9500 Lb Seal Gen2 9.5s 12V STD is backordered and will ship as soon as it is back in stock.
Description
Description
ComeUp Automotive Self-Recovery Winch: Efficiency at Its Best
- 12V DC severe duty winch rated at 9,500 lb pulling meets or exceeds your expectations.
- Heavy duty series wound motor equipped with thermal switch alters when motor over-heating.
- 16 equally positioned pin holes with a stainless steel ergonomic T-handle make it possible to reposition in 22.5 degree increments.

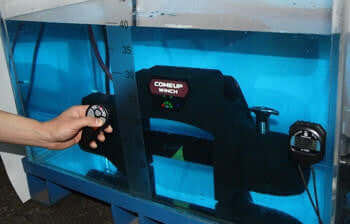

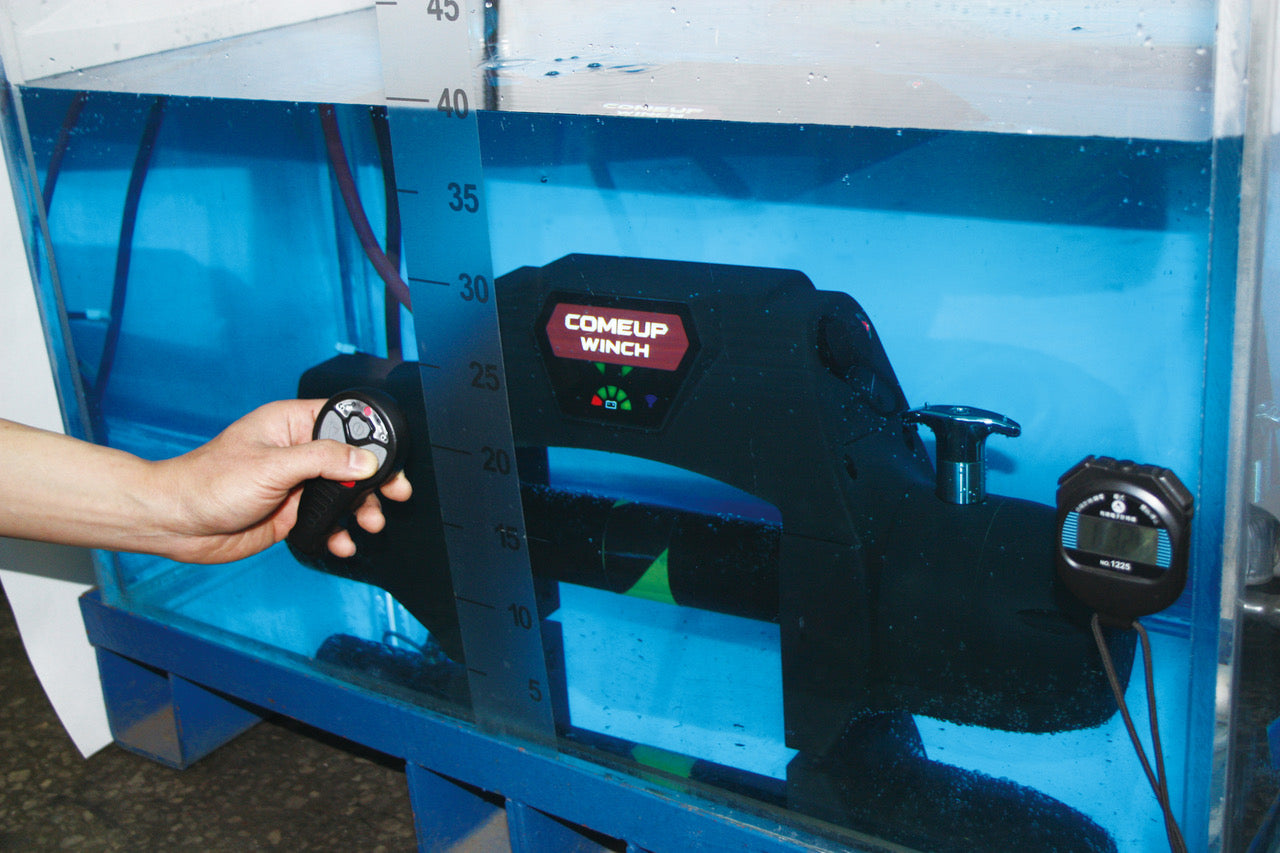

- Water-proof remote control with thermometric LED indicator w/5 m cord
- A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
- Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch
- The U.S. Germany, U.K. France, etc patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.
- Meet SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2004/108/EC.
- Part number: PN 295990
- Rated line pull: 4,309 kg / 9,500 lb single line
- Motor: 3,730 w / 5.0 hp 12V series wound
- Gear ratio : 3-stage planetary 159:1
- Clutch (freespooling): Rotating ring gear
- Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
- Winch construction: Aluminum die cast housings with steel drum

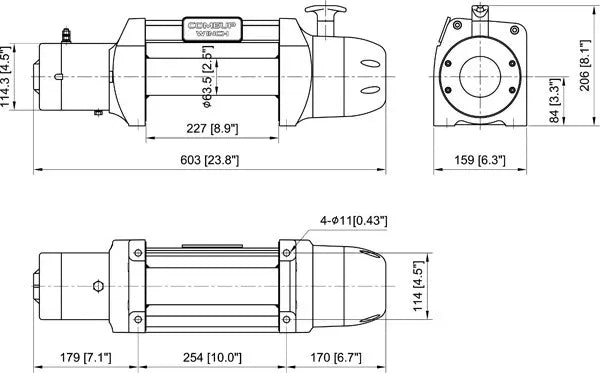

- Drum size: 63.5 x 227x 273 mm (2.5” x 8.9” x 10.7")
- Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
- Rope type: Synthetic rope
- Rope size: 10 mm x 30.5 m (3/8” x 100’)
- Mounting bolts pattern: 254 x 114 mm (10” x 4.5”)
- Mounting : Foot forward or foot down mounting workable
- Finish : Matte black powder-coated
- Winch weight (including rope) : 28.5 kg / 62.5 lb
- Gross weight : 40 kg / 88 lb
- Box dimension, (L x D x H) : 682 x 209 x 430 mm (26.9" x 8.2" x 16.9")
Line Speed and Amp. Draw (1st layer of rope on the drum):
| Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp, Draw, A |
| 12V | ||
| No load | 14.8 / 48.6 | 60 |
| 907 / 2,000 | 4.8 / 15.7 | 115 |
| 1,814 / 4,000 | 3.6 / 11.8 | 210 |
| 2,722 / 6,000 | 2.8 / 9.2 | 245 |
| 3,629 / 8,000 | 2.3 / 7.6 | 280 |
| 4,309 / 9,500 | 2.2 / 7.2 | 380 |
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
| 1st | 4,309 / 9,500 | 5.1 / 16.7 |
| 2nd | 3,472 / 7,655 | 11.7 / 38.4 |
| 3rd | 2,908 / 6,410 | 19.7 / 64.6 |
| 4th | 2,501 / 5,514 | 30.5 / 100 |
Winches are not to be used for the lifting or moving of persons.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 10 wraps from the drum.Warranty
Each new winch is guaranteed against defects in workmanship and material defects for a stipulate period from date of purchase.
*Automotive Winch: Limited lifetime warranty for mechanical components,
New Seal Gen2 Series winch a three (3) years warranty for electrical components,
WIRE/SYNTHETIC ROPES ARE NOT INCLUDED UNDER WARRANTY.
| Standard Accessories | Option Accessories |
|
|
Powerful Performance
The ComeUp Automotive Self-Recovery Winch delivers a powerful performance, making it an essential tool for off-road enthusiasts. With a pulling capacity of 9,500 lbs, this winch is ideal for various vehicles, including SUVs and trucks. Furthermore, its 12V electric motor ensures efficient recovery whenever you face tough situations on the road. Whether you are stuck in mud or sand, this winch stands ready to help you out quickly and effectively.
Durability You Can Count On
Designed with high-quality materials, the ComeUp Automotive Self-Recovery Winch is built to withstand harsh conditions. It features a robust construction that resists wear and tear, ensuring longevity and reliability. So, you can depend on this winch even in the most challenging environments. Additionally, the Gen2 design incorporates advanced sealing technology to protect the internal components from water and dirt, making it an excellent choice for off-road adventures.
Easy Installation and Use
Installing the ComeUp Automotive Self-Recovery Winch is straightforward. Most users find that they can set it up quickly, thanks to its user-friendly design. The winch also comes with a remote control that allows you to operate it safely from a distance. This convenience means you can focus on recovering your vehicle without worrying about safety hazards. Because of its intuitive controls, both beginners and experienced users will appreciate the ease of use.
