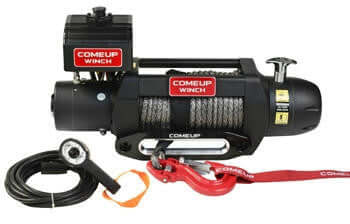

ComeUp Automotive Self-Recovery Winch Seal Gen2 9.5s 12V STD
Description
Description
- 12V DC severe duty winch rated at 9,500 lb pulling meets or exceeds your expectations.
- Heavy duty series wound motor equipped with thermal switch alters when motor over-heating.
- 16 equally positioned pin holes with a stainless steel ergonomic T-handle make it possible to reposition in 22.5 degree increments.

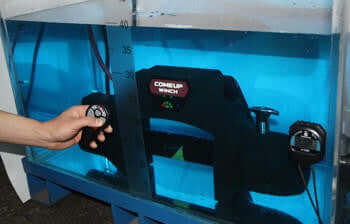

- Water-proof remote control with thermometric LED indicator w/5 m cord
- A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
- Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch
- The U.S. Germany, U.K. France, etc patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.
- Meet SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2004/108/EC.
- Part number: PN 295990
- Rated line pull: 4,309 kg / 9,500 lb single line
- Motor: 3,730 w / 5.0 hp 12V series wound
- Gear ratio : 3-stage planetary 159:1
- Clutch (freespooling): Rotating ring gear
- Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
- Winch construction: Aluminum die cast housings with steel drum
- Drum size: 63.5 x 227x 273 mm (2.5” x 8.9” x 10.7")
- Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
- Rope type: Synthetic rope
- Rope size: 10 mm x 30.5 m (3/8” x 100’)
- Mounting bolts pattern: 254 x 114 mm (10” x 4.5”)
- Mounting : Foot forward or foot down mounting workable
- Finish : Matte black powder-coated
- Winch weight (including rope) : 28.5 kg / 62.5 lb
- Gross weight : 40 kg / 88 lb
- Box dimension, (L x D x H) : 682 x 209 x 430 mm (26.9" x 8.2" x 16.9")
Line Speed and Amp. Draw (1st layer of rope on the drum):
| Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp, Draw, A |
| 12V | ||
| No load | 14.8 / 48.6 | 60 |
| 907 / 2,000 | 4.8 / 15.7 | 115 |
| 1,814 / 4,000 | 3.6 / 11.8 | 210 |
| 2,722 / 6,000 | 2.8 / 9.2 | 245 |
| 3,629 / 8,000 | 2.3 / 7.6 | 280 |
| 4,309 / 9,500 | 2.2 / 7.2 | 380 |
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
| 1st | 4,309 / 9,500 | 5.1 / 16.7 |
| 2nd | 3,472 / 7,655 | 11.7 / 38.4 |
| 3rd | 2,908 / 6,410 | 19.7 / 64.6 |
| 4th | 2,501 / 5,514 | 30.5 / 100 |
Winches are not to be used for the lifting or moving of persons.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 10 wraps from the drum.Warranty
Each new winch is guaranteed against defects in workmanship and material defects for a stipulate period from date of purchase.
*Automotive Winch: Limited lifetime warranty for mechanical components,
New Seal Gen2 Series winch a three (3) years warranty for electrical components,
WIRE/SYNTHETIC ROPES ARE NOT INCLUDED UNDER WARRANTY.Dimension, mm/in:
- 16 equally positioned pin holes ensure seamless clutch transmission and make it easily rotate by 22.5° increments.
| Standard Accessories | Option Accessories |
|
|
