A hard folding tonneau cover is appealing because it protects the ute tub while letting you open only part of the load area. But fitting a tri-fold or quad-fold hard lid is not a one-size-fits-all job. Tub shape, rail trim, clamp position, seal contact and existing accessories determine whether the lid can be mounted correctly.
This ute hard lid installation guide is a pre-purchase and fitting checklist for Australian owners. It is not a substitute for the illustrated fitting guide supplied with your exact cover. Start with the product's vehicle compatibility and hardware list before choosing tools or attempting any modification.
Tri-fold versus quad-fold: what changes during fitting?

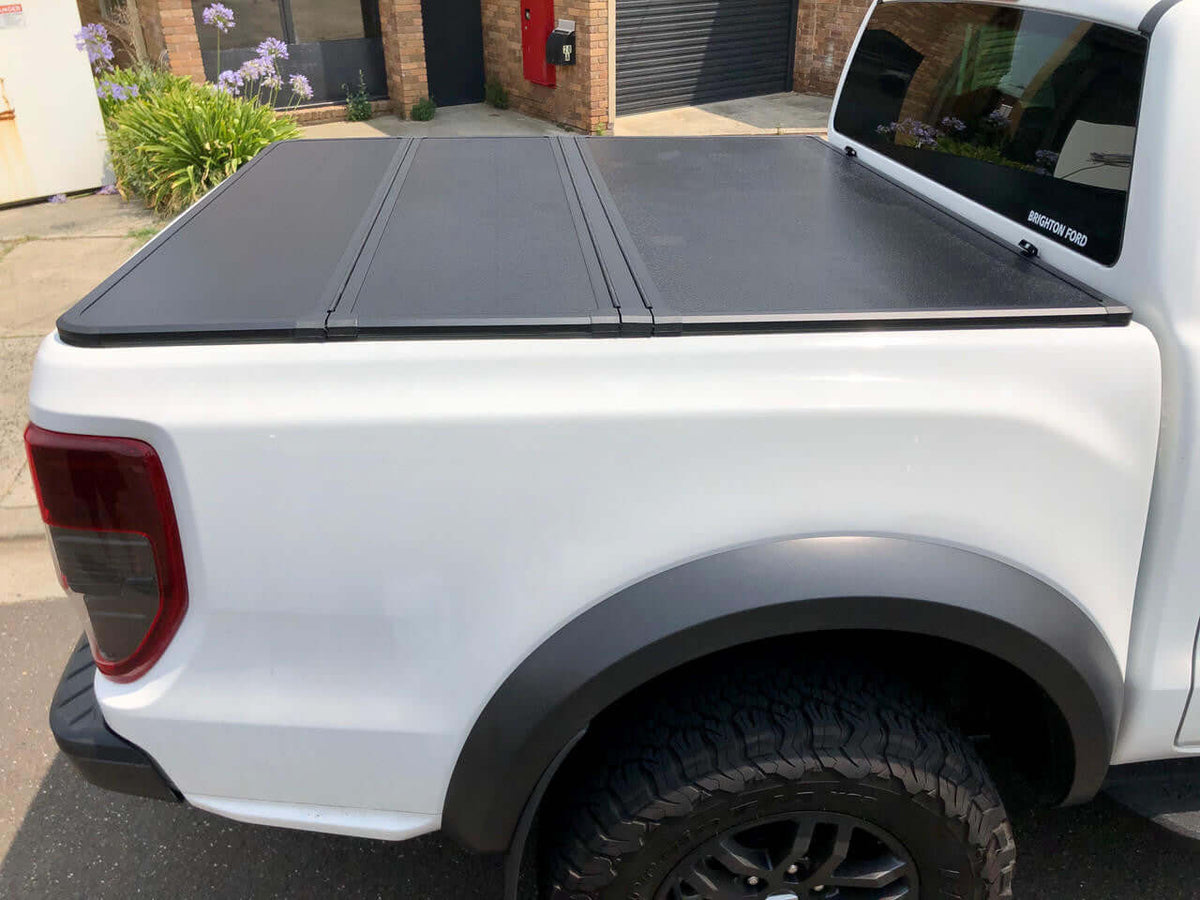

A tri-fold hard lid has three main folding sections, while a quad-fold hard lid has four. Both need a stable mounting position on the correct tub and enough space for their hinges, clamps and folded-panel restraints to operate.
The number of sections changes how the cover folds and how much opening you can access, but it does not tell you whether a product needs separate brackets, uses clamps alone or can be removed without tools. Those details depend on the specific cover and vehicle.
Browse hard folding tonneau covers for supported fitments, and compare soft versus hard folding constructions in our tri-fold tonneau guide.
Start with the exact ute generation and tub
The year and trim on your vehicle matter. A cover designed around one tub opening may not line up with a newer generation's rails, tailgate or liner even if both vehicles carry the same badge. Confirm the make, model, generation, body style and tub configuration shown on the product listing.
Check for an aftermarket tub, factory sports bar, canopy mounting holes, over-rail liner or other hardware already installed. If a previous cover left extra brackets or seals behind, those may interfere with the new mounting arrangement. Do not assume the clamps can safely grip the same area without checking.
Inspect the mounting surfaces and hardware
Before placing the cover on the vehicle, identify the mounting method specified by the manufacturer:
- Clamp-only designs: these rely on a suitable tub lip or rail shape at every clamp position.
- Cover-specific brackets: the factory tub may need extra mounting surfaces or adapters supplied with the kit.
- Side-rail systems: some covers require dedicated tracks or rails rather than attaching directly to the tub edge.
- Existing accessories: a sports bar, over-rail liner or rack clamp can leave too little room for the intended hard-lid fastener.
Do not assume “no drilling” means “no brackets.” Some kits use existing factory bolts to secure small adapters, while others may require a different mounting procedure. The exact instructions decide what is correct.
Example: why the BYD Shark 6 needs rear brackets
On UniUte's BYD Shark 6 tri-fold hard lid, the vehicle's deep rear tub corners do not provide a suitable clamping surface for the cover's central clamp positions. The supplied rear brackets bolt into factory mounting holes with a T40 TORX bit. No drilling or trimming is needed for that specific kit.
After initial fitting, the cover itself can be removed and reinstalled quickly while the small brackets remain on the tub. This is a product-specific example, not a rule for every Shark 6 lid. Read our BYD Shark 6 hard-lid bracket and removal guide for the full explanation.
Hard lid fitting checklist
- Identify the complete kit: check the intended vehicle, all supplied brackets, clamps, seals and restraints.
- Clean the contact areas: dirt or trapped grit can affect seal seating and damage paint or liner finishes.
- Position the lid as instructed: use a second person for heavy aluminium assemblies to avoid scratching the cab, rails or tailgate.
- Check alignment before tightening: the folded sections must sit correctly and the tailgate must operate without binding.
- Install only approved mounting hardware: follow the relevant diagram, tightening guidance and specified fastener positions.
- Inspect the seals: look for gaps at hinges, corners, side rails and the tailgate, without crushing or relocating seals outside their design.
- Test folding and full closure: each section should move and latch as intended without forcing the mechanism.
- Confirm the permitted driving positions: use the manufacturer's restraints and do not travel with panels unsecured.
What if the ute has a tub liner?
An over-rail tub liner may cover the metal lip that a lid clamp is designed to grip. Under-rail liners, different rail-cap profiles and tailgate protectors can also affect seal contact. Check the actual mounting surface—not just the vehicle model—and confirm whether the cover manufacturer allows the liner to remain as installed.
Do not cut or trim factory or aftermarket tub protection simply because a generic fitting video shows a different ute. If the instructions require a modification, confirm it is necessary and appropriate for your exact model before proceeding.
Water and dust resistance after fitting
Hard lids can significantly reduce exposure to normal rain and road dust, but they should not be sold as guaranteed waterproof in every condition. Folding hinges, perimeter seals, tailgate geometry, tub drainage and fitting accuracy all affect ingress. The best first check is whether seals meet the intended surfaces evenly when closed.
Keep seals clean, check for damage after frequent folding and investigate leaks rather than simply tightening clamps harder. Too much pressure can cause misalignment or damage components.
Can you remove the cover for tall cargo?
Some hard folding covers are designed for quick removal once their base brackets are installed. Others have a different removal procedure or require tools. Check the product page and the fitting guide. A quick-removal design is useful when carrying tall objects, but do not lift a large cover alone if its size or weight makes the job unsafe.
Frequently asked questions
Do all tri-fold and quad-fold covers install the same way?
No. The mounting method varies by brand, vehicle and cover generation, even when two lids look similar.
Is drilling always necessary?
No. Some kits clamp on or bolt to factory points. Other kits may have different fitting requirements. Use the instructions for the exact product.
Does a locked tailgate make a hard lid theft-proof?
No. Correctly latched rigid panels can help deter casual access, but locks and lids offer differing levels of protection. Keep valuables secured appropriately.
Can a roof rack or sports bar stay fitted?
Only if both accessory mounting systems and the lid's folding path are compatible. Check the full combination before ordering.
Can a fitting guide help me decide before purchasing?
Yes. Use it to identify required tools, brackets, mounting surfaces and the installation sequence before paying for a cover or booking a fitting appointment.
