Choosing the right Isuzu D-Max canopy depends on how you use your ute. A tradie carrying tools every day has different priorities from a family building a D-Max for touring, camping and weekend travel. Some owners want maximum roof-load capacity and rugged construction, while others prioritise lower weight, central locking or a factory-style colour-matched finish.
For the current-generation Isuzu D-Max dual cab, UniUte offers three main canopy styles: fibreglass, stainless steel and one-piece aluminium. All three create a more secure and weather-protected load area, but there are important differences in construction, weight, roof capacity, locking and appearance.
This guide compares the three options for Isuzu D-Max 2020–2026 models so you can choose a canopy that suits the complete vehicle build rather than simply picking the longest specifications list.
Which Isuzu D-Max Canopy Is Best?
There is no single canopy that is automatically best for every D-Max owner.
The FORCE PRO fibreglass D-Max canopy is the premium choice for drivers who want an integrated, factory-style appearance. It can be colour matched to the vehicle and includes features such as rear-door central locking, lift-up side windows and heated rear glass.
The stainless steel D-Max canopy is the heavy-duty option. Its 1.5 mm stainless steel construction and 150 kg dynamic / 400 kg static roof-rail rating make it particularly suitable for work vehicles and touring builds carrying substantial roof-mounted equipment.
The one-piece aluminium D-Max canopy balances strength with lower canopy weight. At approximately 65 kg, it reduces payload impact while still providing gullwing access and roof rails rated to 150 kg dynamic / 300 kg static.
| Feature | Fibreglass FORCE PRO | Stainless Steel | One-Piece Aluminium |
|---|---|---|---|
| Best suited to | Daily driving, touring, premium finish | Work, heavy-duty touring, high roof loads | Touring, work, weight-conscious builds |
| Construction | Fibreglass shell | 1.5 mm stainless steel | One-piece aluminium shell |
| Finish | Factory colour-matched options | Black powder coat | Black powder coat |
| Side access | Lift-up glass side windows | Gullwing side doors | Gullwing side doors |
| Locking | Rear-door central locking | Key-lockable doors | Key-lockable doors |
| Roof-rail rating | 100 kg | 150 kg dynamic / 400 kg static | 150 kg dynamic / 300 kg static |
| Approx. canopy weight | Varies by configuration | Varies by configuration | Approx. 65 kg |
| Installation | No-drill clamp-on | No-drill bolt-on | No-drill bolt-on |
| Main advantage | Factory-style finish and convenience | Maximum roof capacity and ruggedness | Strength-to-weight balance |

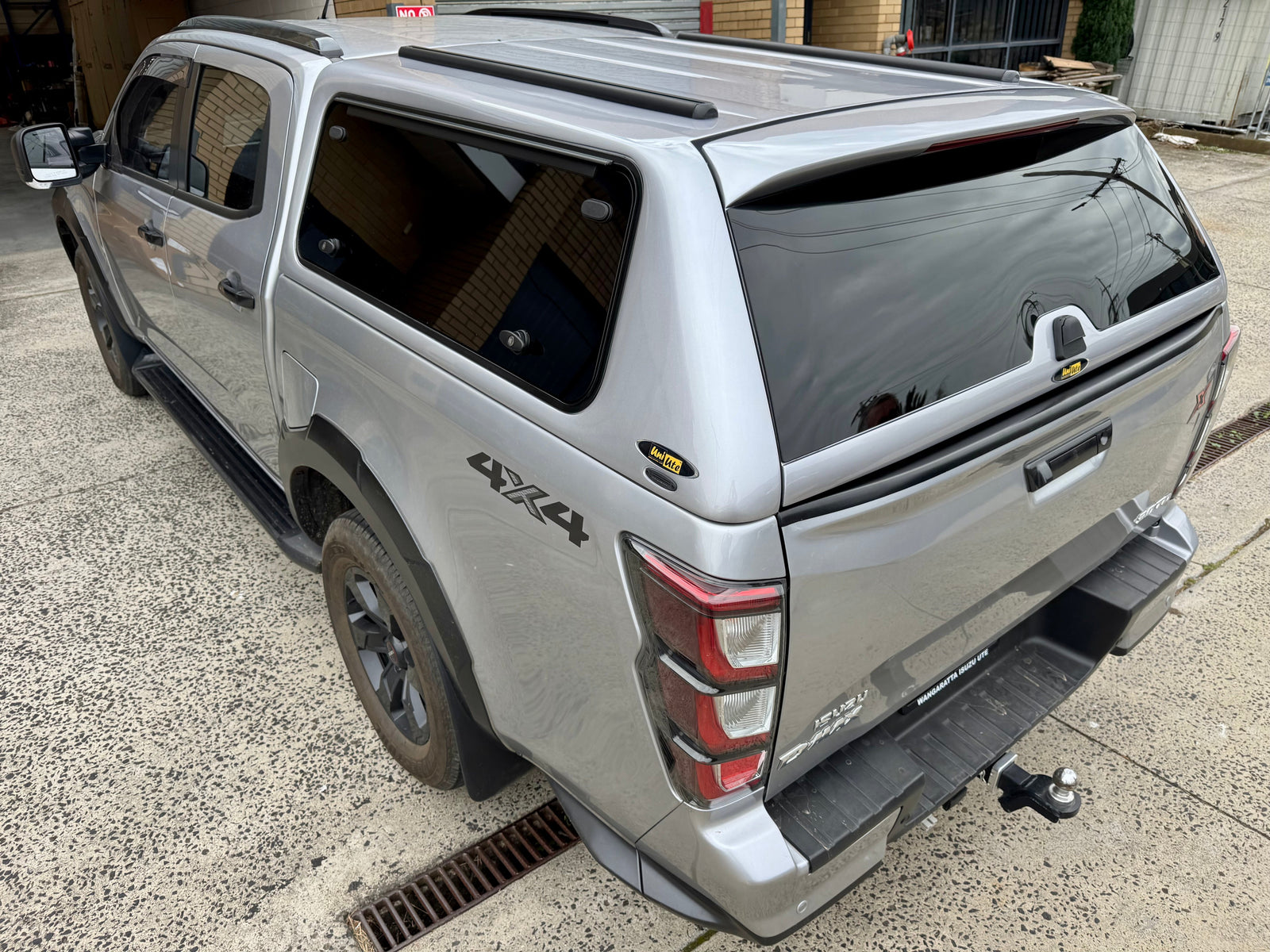

Fibreglass Canopy for Isuzu D-Max
A fibreglass canopy is usually the best fit for D-Max owners who want the vehicle to retain a clean, factory-style appearance while gaining enclosed storage.
The UniUte Isuzu D-Max fibreglass canopy is precision moulded for the 2020–2026 dual-cab tub rather than being a generic universal shell. Its colour-coded finish can be matched to the vehicle's factory paint, which helps the canopy look integrated with the body rather than added on afterwards.
The FORCE PRO also focuses on everyday convenience. The rear door integrates with the vehicle's central locking system, so it can lock and unlock with the existing key fob. Full-width lift-up side windows provide access from either side of the tub, while tinted tempered glass adds privacy. A sliding front window provides ventilation and access towards the cab, and heated rear glass assists visibility in cold or wet conditions.
The canopy includes aluminium roof rails rated to 100 kg. Any roof-rack, tent or accessory setup should also stay within the limits of the rack system, canopy and vehicle itself.
Who Should Choose the Fibreglass D-Max Canopy?
Choose fibreglass when appearance, daily usability and integrated features matter more than achieving the highest possible roof-load rating. It is particularly well suited to D-Max owners carrying luggage, camping equipment, sports gear or everyday work equipment who still want a factory-style finish.
Stainless Steel Canopy for Isuzu D-Max
For heavier-duty applications, the stainless steel Isuzu D-Max canopy is the strongest roof-carrying option in the current UniUte range.
It uses 1.5 mm stainless steel construction with a black powder-coated finish and large gullwing side doors supported by gas struts. Wide-opening side access is useful for work and touring because equipment can be reached from either side instead of requiring you to climb into the tub through the rear.
Its major advantage is roof capacity. The current roof rails are rated to 150 kg dynamic and 400 kg static. Dynamic load is the load carried while the vehicle is moving; static load applies while the vehicle is stationary. That makes the steel version especially relevant to builds using substantial roof-mounted equipment, subject to the limits of every component in the system and the vehicle's legal payload.
Tinted tempered-glass windows, key-lockable handles, an integrated LED brake light and ventilation are incorporated into the design. Full-perimeter seals are intended to reduce water and dust ingress in normal use.
Who Should Choose the Stainless Steel D-Max Canopy?
The stainless version makes the most sense when strength, roof capacity, work access and a rugged touring setup are the priorities. Tradies, owners planning a roof-top tent setup, and drivers regularly carrying heavier roof-mounted equipment may benefit most from this configuration.
One-Piece Aluminium Canopy for Isuzu D-Max
Aluminium is a strong option for buyers who need useful roof capacity but are conscious of vehicle payload.
The UniUte one-piece aluminium canopy for Isuzu D-Max weighs approximately 65 kg. That matters because every accessory fitted to the vehicle — including bull bars, drawers, batteries, recovery equipment, racks, passengers and the canopy itself — contributes towards the vehicle's total load.
The one-piece aluminium shell uses a black powder-coated finish and gullwing side doors with gas struts for wide access. Tinted tempered glass, ventilation, an integrated LED brake light and key-lockable handles are incorporated into the canopy. Its roof rails are rated to 150 kg dynamic and 300 kg static.
Who Should Choose an Aluminium D-Max Canopy?
Aluminium makes particular sense for touring builds where payload management is important. It can also suit work vehicles where owners want gullwing access and strong roof capacity without choosing the heavier-duty stainless approach.
Fibreglass vs Aluminium vs Stainless Steel D-Max Canopy
The easiest way to choose is to start with your main use rather than the material itself.
- Daily driving and factory-style appearance: the FORCE PRO fibreglass canopy is the strongest fit.
- Tradie or heavy-duty touring use: stainless steel offers the highest stated roof-load capacity in the range.
- Touring with payload in mind: the approximately 65 kg aluminium canopy provides a useful strength-to-weight balance.
- Frequent side access: both metal canopies use large gullwing doors, while FORCE PRO uses lift-up glass side windows.
- Central locking: FORCE PRO integrates rear-door locking with the D-Max key fob; the metal canopies use key-lockable handles.
If you want to compare these products alongside the rest of the vehicle range, browse the full Isuzu D-Max accessories collection.
Can You Put a Roof-Top Tent on an Isuzu D-Max Canopy?
Potentially, yes — but the canopy, roof rails, rack system and vehicle must all be suitable for the intended load.
Two figures matter. Dynamic roof load applies while the D-Max is moving. Static roof load applies while it is parked. A roof-top tent may be within the dynamic rating while driving, but once occupants climb inside, the stationary load becomes much higher.
Always check the lowest-rated component in the complete setup and ensure the vehicle remains within its legal payload and axle limits.
Are Isuzu D-Max Canopies Waterproof?
A correctly installed quality canopy is designed to provide strong protection against normal rain, road spray and dust, but it is better to think of a ute canopy as weather-resistant rather than completely waterproof under every possible condition.
Water can potentially enter around seals or openings during extreme weather, water crossings or direct high-pressure washing. Good results depend on accurate fitment, quality seals, drainage and correct installation.
Are D-Max Canopies Secure?
Adding an enclosed canopy substantially improves cargo security compared with leaving equipment exposed in an open tub.
The FORCE PRO fibreglass canopy includes central locking on the rear door that integrates with the D-Max key fob. The stainless and aluminium versions use key-lockable external handles. Tinted windows also reduce the visibility of cargo stored inside.
For higher-value tools or touring equipment, a second layer of storage can help. A vehicle-specific Isuzu D-Max sliding tray improves access to gear at the front of the tub, while the wider D-Max accessory range includes additional storage and tub-protection options.
Can You Install a D-Max Canopy Without Drilling?
The current UniUte canopy range for the Isuzu D-Max 2020–2026 is designed around no-drill canopy mounting. FORCE PRO uses a clamp-on approach, while the stainless steel and aluminium versions use supplied bolt-on mounting systems designed around the tub.
Correct alignment is important for door operation, sealing and long-term fitment. Experienced owners may choose DIY installation, while professional fitment is available through UniUte in Moorabbin, Victoria.
How Much Does an Isuzu D-Max Canopy Cost?
The price of a D-Max canopy varies significantly depending on material, design, locking system, roof capacity, finish and included features. Rather than comparing the advertised canopy price alone, compare the complete setup you need.
A colour-matched fibreglass canopy provides a different type of value from a high-roof-load steel canopy, while aluminium can save useful payload. Freight can also affect the total cost because canopies are bulky products.
For current pricing, stock and colour availability, use the individual product pages for the fibreglass canopy, stainless steel canopy and aluminium canopy.
Which D-Max Models Do These Canopies Fit?
The canopy options covered in this guide are designed for Isuzu D-Max dual cab models from 2020 through 2026. Because tub dimensions and body configurations vary between generations, do not assume a 2020+ canopy will fit an earlier D-Max.
Confirm your exact year, model and body configuration before ordering. You can also browse the Isuzu D-Max collection to see products grouped for the vehicle.
Building a Complete D-Max Touring or Work Setup
A canopy is often only one part of a complete tub setup. An Isuzu D-Max sliding tray can make equipment at the front of the tub much easier to reach by bringing the load towards the tailgate. For owners who do not need full-height enclosed storage, alternatives include electric roller shutters, hard lids and soft tonneau covers.
For a broader vehicle-by-vehicle overview, see our Isuzu D-Max Accessories Complete Guide for 2020–2026.
Is a Canopy Worth It on an Isuzu D-Max?
For owners regularly carrying tools, luggage, camping equipment or valuable gear, a canopy can dramatically change how useful the D-Max tub becomes. Instead of an exposed load area, you gain enclosed storage with substantially better protection from weather and opportunistic theft.
The key is choosing the right canopy for the way you use the vehicle. Choose FORCE PRO fibreglass for a colour-matched factory-style finish and integrated central locking. Choose stainless steel when heavy-duty construction and maximum roof capacity are the priorities. Choose one-piece aluminium when you want strong roof capacity and gullwing access while keeping canopy weight lower.
Frequently Asked Questions
What is the best canopy for an Isuzu D-Max?
There is no single best option for every owner. Fibreglass suits buyers wanting a factory-style colour-matched finish and integrated central locking. Stainless steel suits heavy-duty work and higher roof-load requirements, while aluminium offers a strong balance between lower weight and roof capacity.
What canopy fits an Isuzu D-Max 2020–2026?
UniUte offers vehicle-specific fibreglass, stainless steel and one-piece aluminium canopy options designed for Isuzu D-Max 2020–2026 dual cab models. Always confirm the exact vehicle year and body configuration before ordering.
Is fibreglass or aluminium better for a D-Max canopy?
Fibreglass is generally better when appearance, colour matching and integrated convenience features are priorities. Aluminium is preferable when reducing canopy weight while retaining strong roof capacity is more important.
Is a stainless steel canopy better than aluminium?
Not necessarily. Stainless steel provides the highest stated roof capacity of the three UniUte options, while aluminium keeps canopy weight lower. The right choice depends on payload, roof accessories, work requirements and touring setup.
Can a D-Max canopy carry a roof-top tent?
A suitable canopy and rack combination can support a roof-top tent when all dynamic and static load limits are respected. Check the canopy, roof rails, rack, tent and vehicle limits before installation.
Can I get an Isuzu D-Max canopy fitted in Melbourne?
Yes. UniUte offers canopy pickup and professional fitment in Moorabbin, Victoria, as well as Australia-wide delivery.
What is the difference between a canopy and a roller shutter on a D-Max?
A canopy adds full-height enclosed storage above the tub, while a roller shutter keeps the original open-ute profile and protects cargo below the tub rails. The better option depends on the storage volume, roof-carrying needs and appearance you prefer.
Compare Isuzu D-Max Canopies
Before choosing, compare the FORCE PRO fibreglass canopy, stainless steel canopy and one-piece aluminium canopy. Consider payload, roof load, side access, locking and the overall look you want from the vehicle.
Explore all Isuzu D-Max accessories for compatible storage, tub protection and touring upgrades.
