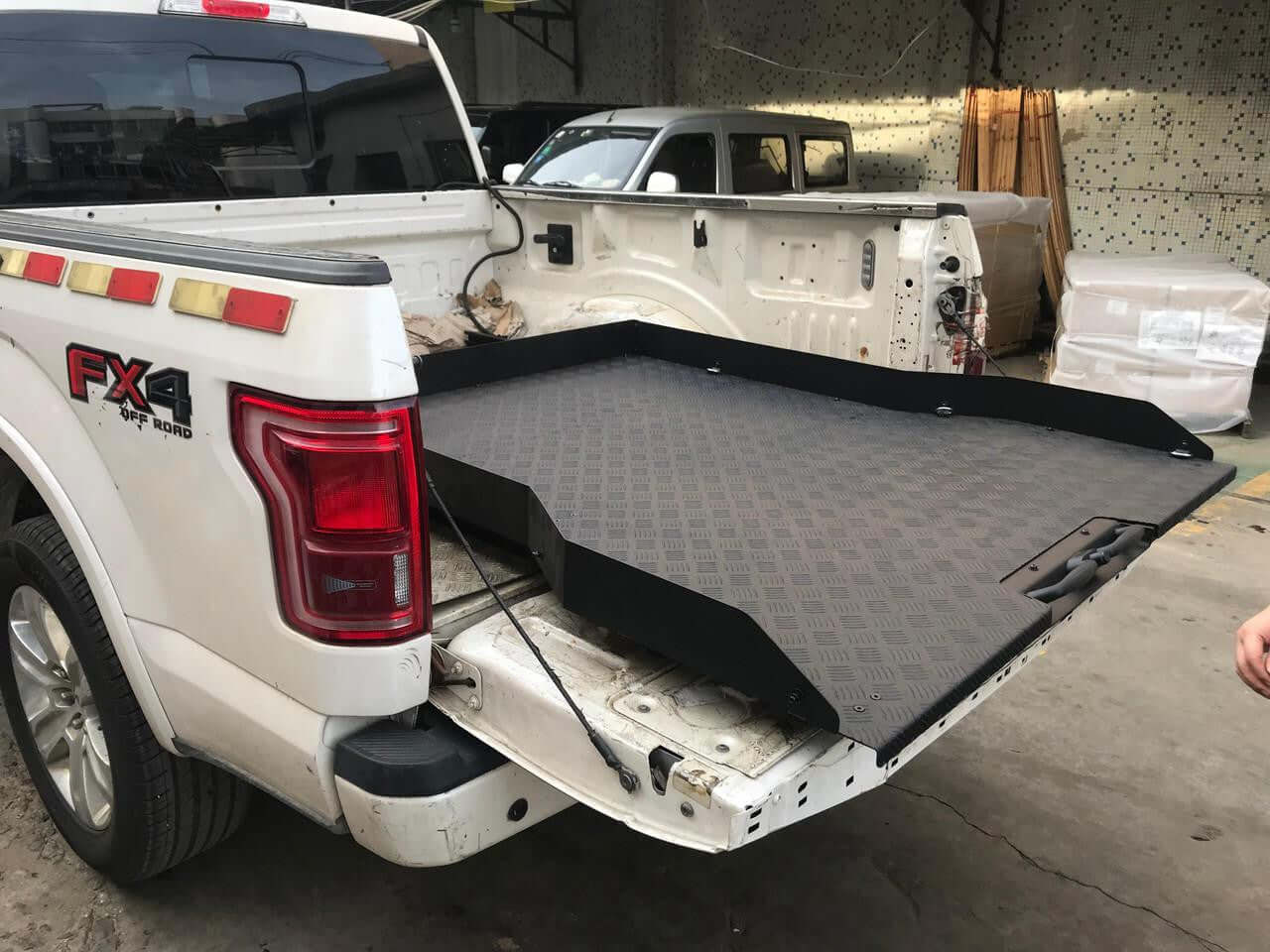

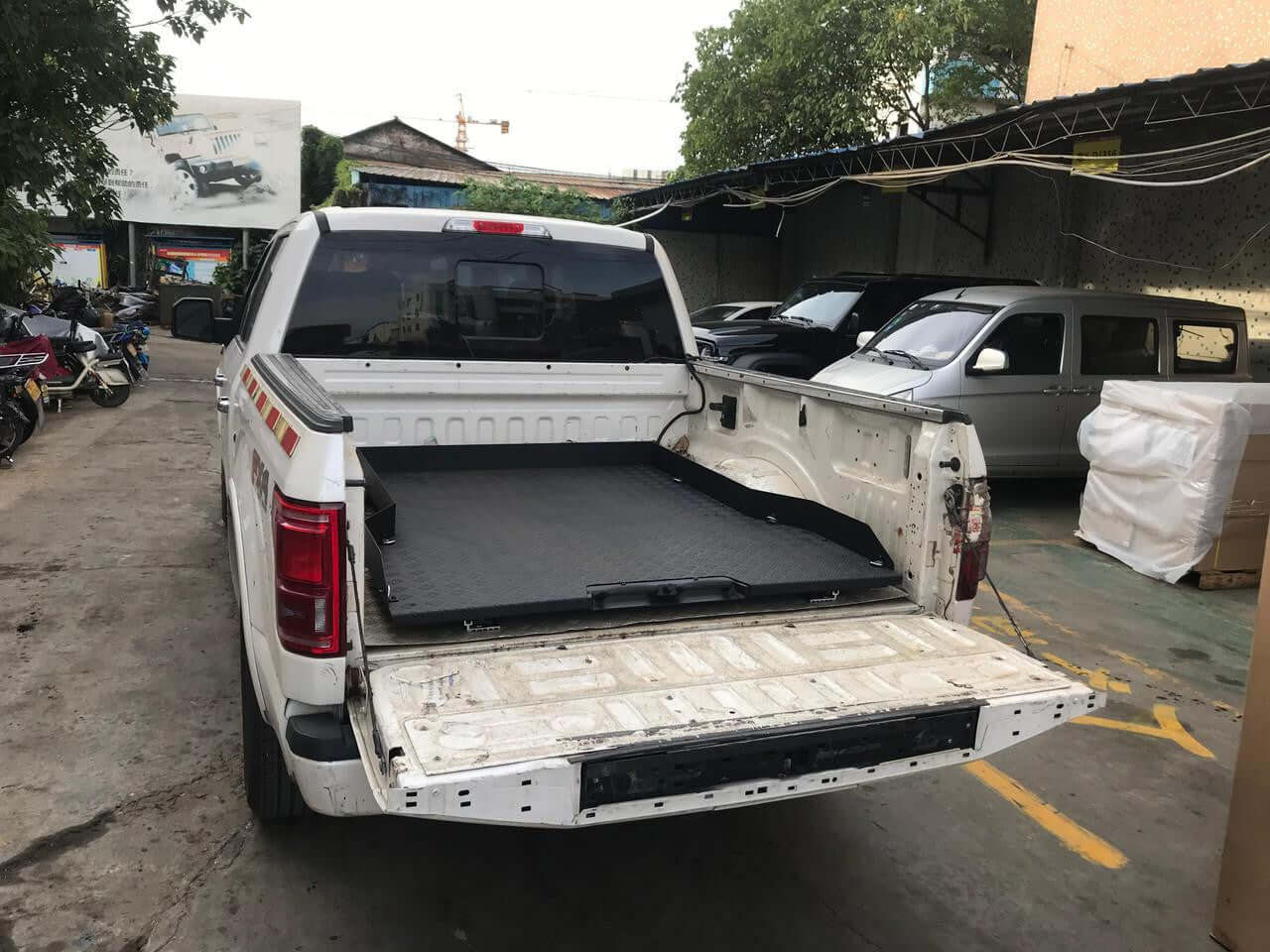

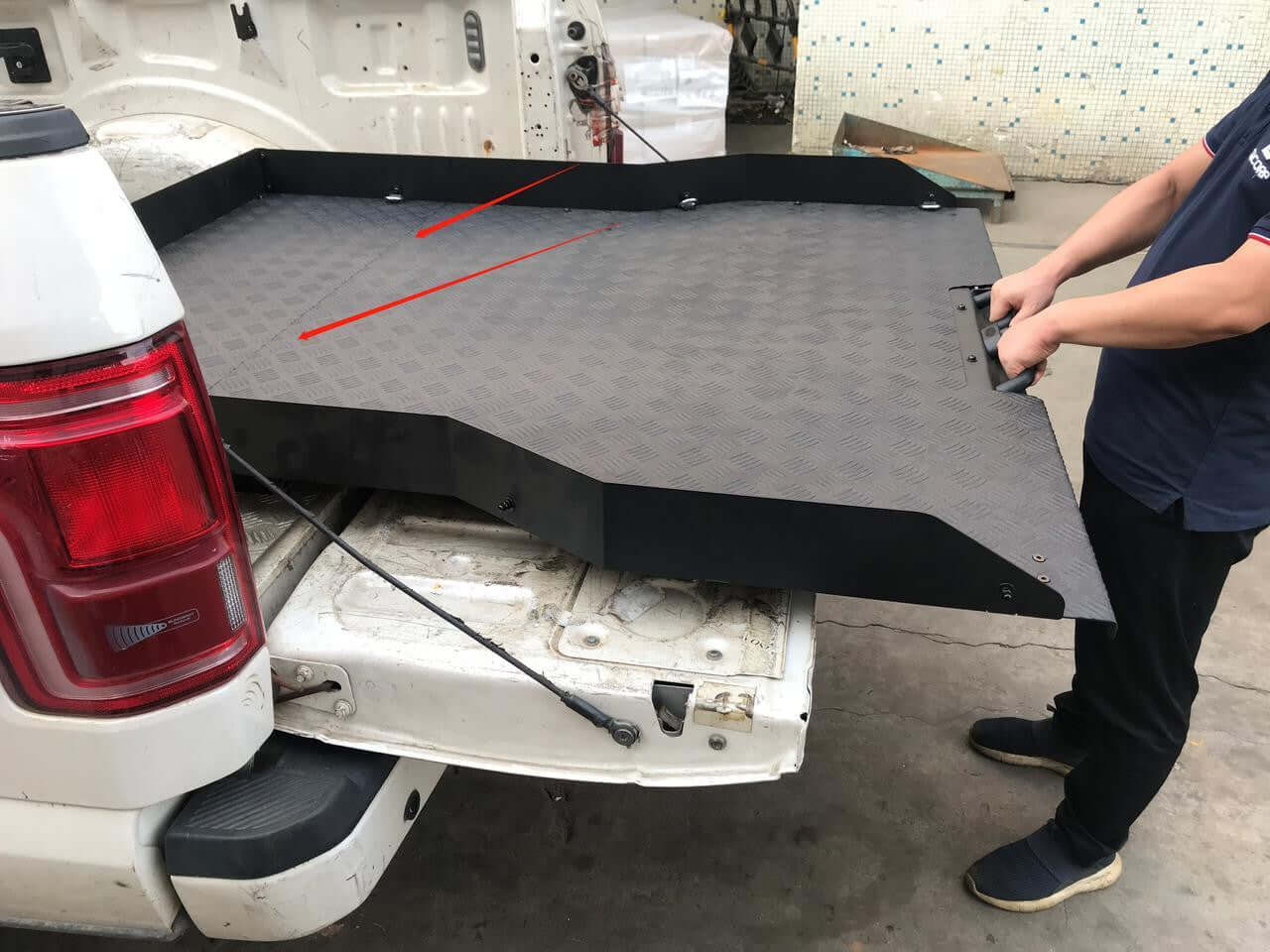

Ford F-150 Sliding Tray — Precision Fit for the 5'5" SuperCrew Bed
The F-150 SuperCrew's 5'5" short bed is a common configuration among Australian F-150 owners, and it pairs well with a sliding tray that uses every millimetre of available depth. This tray is sized to the SuperCrew bed floor, extending a full 1000 mm so gear stacked at the bulkhead is brought level with the tailgate — no more awkward reaching or climbing. Built from powder-coated steel with an aluminium checker plate deck, it handles the rigours of both tradework and touring without any structural compromise.
Features:
- Steel frame with powder-coated finish and aluminium checker plate deck
- 400 kg load capacity (evenly distributed across the tray)
- 1000 mm full slide extension for full access to the F-150's 5'5" bed depth
- 3-stage locking system: locked closed, mid-point lock, and fully extended
- 6 integrated D-ring tie-down points for securing tools and cargo in transit
- Heavy-duty ball-bearing runners maintain smooth travel under full load
- Laser-cut steel construction for an accurate fit to the F-150 SuperCrew bed
- Compatible with canopies, roller shutters, and hard lids (confirm clearance with your canopy manufacturer)
- Bolt-on installation with all hardware included — approximately one hour to fit, drilling required
Specifications:

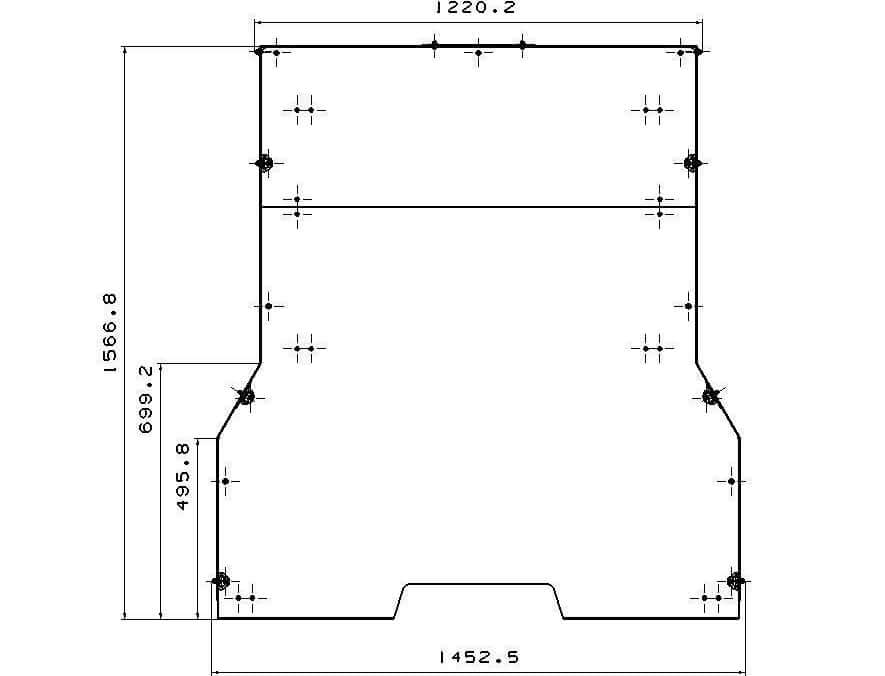

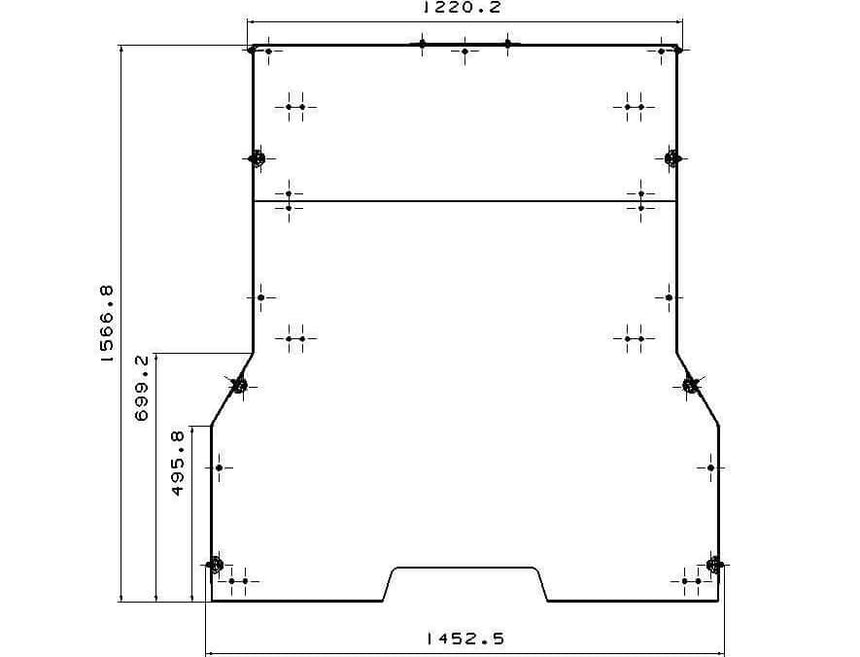

| Specification | Details |
|---|---|
| Overall Length | 1567 mm |
| Overall Width | 1453 mm (1220 mm between wheel arches) |
| Height | 174 mm |
| Slide Travel | 1000 mm |
| Load Capacity | 400 kg (evenly distributed) |
| Deck Surface | Aluminium checker plate |
| Frame | Powder-coated laser-cut steel |
| Product Weight | 60 kg |
| Installation | Bolt-on, drilling required — all hardware included |
Fitment:
Designed for the Ford F-150 with the 5'5" short bed in SuperCrew cab configuration, covering model years 2015 to 2026. Compatible with most canopies, roller shutters, and hard lids — confirm clearance with your canopy manufacturer before ordering. Drilling is required for installation; all hardware is included.
Dispatched from UniUte's Victorian warehouse to all Australian states and territories. Order online for fast, tracked delivery.
Complete your sliding tray setup
For a more practical tub storage system, pair this Ford F-150 5'5" Ute Bed sliding tray with other UniUte storage and protection upgrades. Many owners combine a sliding tray with roller shutters, hard lids or ute canopies to keep gear secure and easier to access. If you need more organisation inside the tub, you can also browse our ute drawers or compare the full ute sliding trays range for other models.
🚚 Depot Pickup — $200
Estimated delivery: 2-8 business days
Collect your order from the nearest freight depot in your state.
Once dispatched, the carrier will contact you with pickup details.
🚛 Standard Residential / Business Delivery — $350
Estimated delivery: 2-8 business days
📦 Delivered via insured road freight to residential and commercial addresses.
⚡ Express Residential / Business Delivery — $450
Priority dispatch with faster delivery where available.
Estimated delivery: 1-4 business days
⚠️ Express delivery prioritises dispatch and transport but timeframes may vary by location.
🏬 Free Pickup — Moorabbin (VIC)
Free pickup is available from our Moorabbin store after order confirmation.
Pickup details will be provided once your order is ready.
Delivery information
- Orders are dispatched promptly from our local warehouse
- Delivered via trusted Australian freight carriers
- Signature on delivery is required unless otherwise advised by the customer
- If no one is available, the carrier will leave a collection card
Important notes
- Delivery requires a physical address (no P.O. boxes or parcel lockers)
- We ship Australia-wide only — international shipping is not available
For full details, please visit our Shipping Policy. If you have any questions, contact us.
• 1-year warranty for the original purchaser; covers defects in materials/workmanship. Repair or replacement at UniUte’s discretion after inspection.
• Exclusions: misuse/neglect, modifications, non-recommended vehicles, competition use, or installation errors. Fitment should be performed by a licensed/competent mechanic.
• Items may need to be returned for assessment; return postage/removal costs aren’t covered (assistance may be considered at UniUte’s discretion).
• Your rights under Australian Consumer Law apply in addition to this warranty.
For full details, please visit our Warranty Terms.
If you have any questions, contact us.
• 30-day returns on eligible items (unused, original packaging, proof of purchase)
• No change-of-mind refunds (exchanges may be available within 14 days)
• Faulty/incorrect items: we’ll repair/replace or refund
• Refunds to original payment method (usually within 10 business days)
• Customer pays return shipping unless the item is faulty
For full details, please visit our Return & Refund Policy.
If you have any questions, contact us.
See How the UniUte Sliding Tray Works
The UniUte Sliding Tray transforms your ute tub into an easy-access workspace. Ideal for tradies, campers, and anyone who needs full access to every inch of their ute tray.
Frequently Asked Questions
What is a ute sliding tray?
What is a ute sliding tray?
A ute sliding tray is a heavy-duty cargo platform that slides out from your tub, giving easy access to your gear without climbing in. It’s ideal for tradies, campers, and 4WD owners who need convenient, safe load access.
How much weight can a UniUte sliding tray carry?
How much weight can a UniUte sliding tray carry?
UniUte sliding trays are rated to carry up to 300–400 kg, depending on model. The reinforced frame and industrial-grade ball-bearing runners ensure smooth, stable operation even under full load.
What materials are the trays made from?
What materials are the trays made from?
Each sliding tray is made from powder-coated steel frame and aluminium runners with a aluminium or plastic deck. Built for durability, corrosion resistance, and all-weather performance.
Can I install the sliding tray myself?
Can I install the sliding tray myself?
Yes. The tray comes pre-assembled with fitting hardware. Installation typically takes under an hour and requires drilling for most ute models.
Is the tray compatible with roller shutters or canopies?
Is the tray compatible with roller shutters or canopies?
Yes — UniUte sliding trays are designed to fit under roller shutters, hard lids, and canopies. Always confirm clearance height and tray dimensions for your specific setup.
How far does the sliding tray extend?
How far does the sliding tray extend?
Depending on model, UniUte trays extend 86 to 100 cms, allowing full access to all gear from outside the tub.
Do sliding trays require maintenance?
Do sliding trays require maintenance?
Minimal maintenance is needed — simply keep the runners free from dirt and apply light lubricant to ensure smooth operation. All components are corrosion-resistant for long-term reliability.
