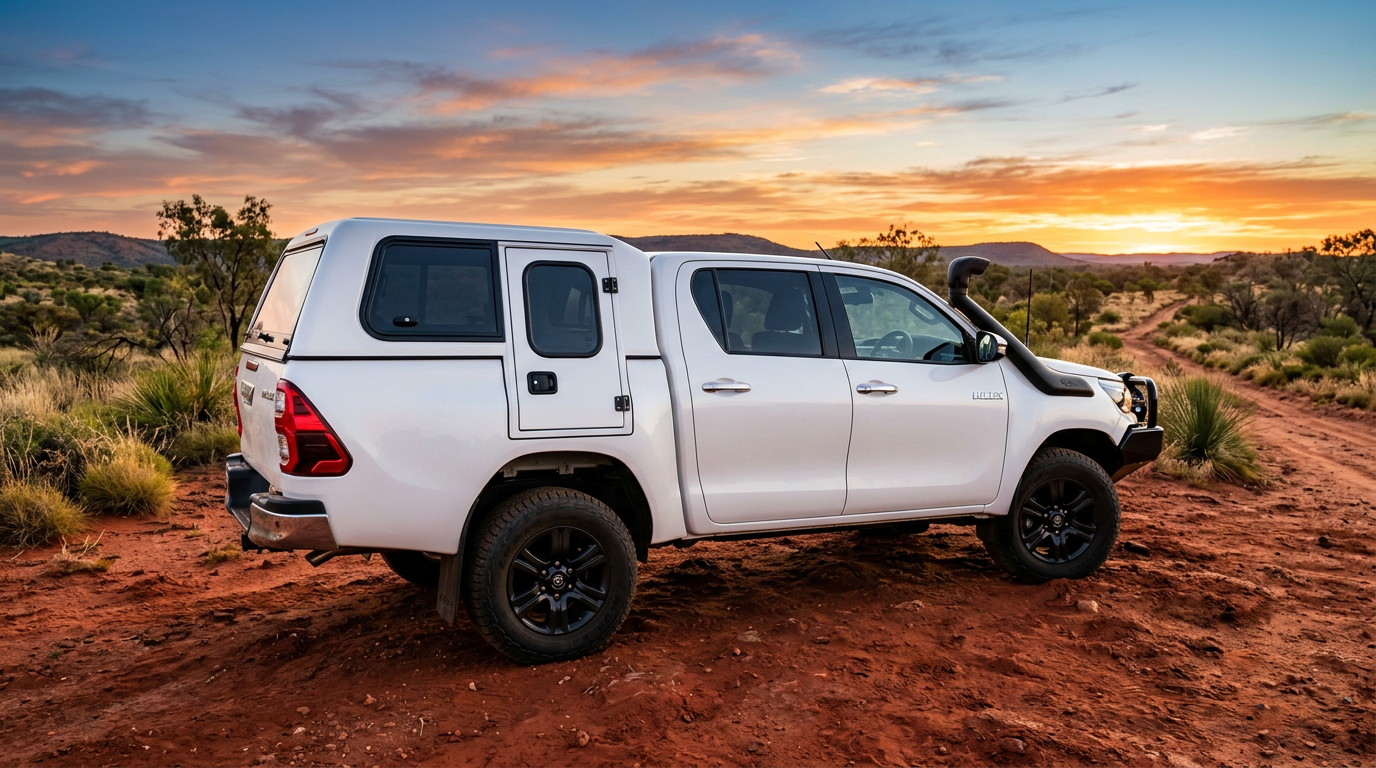

Best Hilux Canopy in 2026: Force Pro Fibreglass, Stainless and Custom-Fit Options

If you own an N80 Hilux (2015–present) — SR, SR5, Rogue, Rugged X, or GR Sport — the Force Pro fibreglass canopy ($3,800) is the top pick: factory paint-matched, dust- and water-sealed, and built to the Hilux's exact tub profile. If budget is the priority or you want maximum load strength, the stainless steel option handles 400 kg static load without rust. Own an older N70 Hilux (2005–2014)? The SR Workmate canopy from $3,000 has you covered. Tradie needing a full tray setup? Read section 6.

Why a Hilux Canopy Is the Right Call

The Toyota Hilux already has one of the best tubs in the dual-cab segment. Add a canopy and that open tray becomes a lockable, weatherproof cargo space that protects tools, camping gear, and freight from theft, dust, and the Australian sun.

There are four practical reasons owners fit a canopy rather than a hard lid or roller shutter:

Security. A canopy with a full-perimeter lock and toughened safety glass is a significantly harder target than a soft tonneau or an open tray. Side doors with central locking mean tools are secured even at an unsupervised worksite.

Weather protection. The Hilux regularly works in conditions that would ruin an open load — rain on the highway, red-dust station tracks, salt spray near the coast. A properly sealed fibreglass or stainless canopy keeps all of it out. Budget-grade solutions often fail here; cheap rubber seals crack and shrink.

Payload management. A canopy lets you stack cargo vertically and, with a roof rack fitted, adds usable load capacity above the tub line. The Force Pro's aluminium roof rails are rated for 100 kg dynamic load, so roof tents, kayaks, and ladder racks are all feasible.

Resale value. A colour-matched fibreglass canopy is considered an asset by used-vehicle buyers in Australia. A quality canopy fitted to a clean Hilux consistently adds to asking price — particularly in rural and tradie markets where covered storage is expected.

For alternatives that don't require a full canopy, UniUte also offers hard lids and roller shutters if you want easier bed access without the full enclosure.

Hilux Generations Explained — N70 and N80

Getting the right canopy starts with knowing which generation you own, because tub dimensions and body profiles changed between the two.

N70 Hilux — 2005 to 2014

The N70 ran from 2005 to mid-2015 and covered the SR, SR5, and Workmate grades as dual-cab variants. The N70 dual-cab tub is approximately 1,540 mm long, 1,540 mm wide, and 480 mm deep, with wheel arch intrusions at roughly 1,100 mm apart. Canopies for this generation are specific to the N70 profile — they will not fit an N80 without serious modification.

UniUte's Hilux SR Workmate canopy for N70 (2005–2014) starts from $3,000 AUD and is matched to the older body style.

N80 Hilux — 2015 to Present

The N80 is the current-generation Hilux and covers every model sold in Australia from 2015 onwards:

• SR — fleet and workhorse grade

• SR5 — the most popular private-buyer spec

• Rogue — premium lifestyle spec with unique exterior trim

• Rugged X — off-road-focused, same dual-cab tub

• GR Sport — performance suspension variant introduced in 2023

All N80 dual-cab variants share the same tub dimensions: approximately 1,570 mm long, 1,645 mm wide, 495 mm deep, with 1,109 mm between the wheel arches. This means a single canopy mould fits every N80 grade — SR through to GR Sport. The fitment difference between grades comes down to the sports bar (present on SR5 and Rogue; must be removed for most canopy installations) and the factory tonneau cover, which is simply unclipped and set aside.

The Force Pro canopy from UniUte is engineered to the N80 tub profile and suits the SR and SR5 variants from MY16 onwards. The same canopy fits 2015–2025 production.

Material Choice for the Hilux — Fibreglass, Stainless, or Aluminium

Each material has a clear use case. Here's how they compare on a Hilux specifically:

Fibreglass (Force Pro)

Fibreglass is the dominant canopy material for private buyers and lifestyle-focused tradespeople. It's lighter than steel (around 60–80 kg for a dual-cab canopy versus 120+ kg for steel), which matters on a Hilux because every kilogram of accessories eats into the GVM headroom. Fibreglass also accepts a factory paint match, so the canopy looks like it left the dealership that way.

The Force Pro uses a premium gel-coat finish over a fibreglass shell, giving a smooth surface that holds colour and resists UV fading over Australian summers. It won't rust, dent, or corrode in coastal environments.

Downside: fibreglass is more vulnerable to impact damage than steel. A sharp collision with a low barrier or a heavy falling load can crack the shell — repairable, but it's worth knowing.

Stainless Steel

UniUte's stainless steel canopy uses 1.5 mm stainless and carries a 400 kg static load rating — significantly higher than fibreglass alternatives. This is the right call for tradies carrying heavy materials on the tray roof, or fleet operators who need long-term durability without any paint maintenance. Stainless doesn't corrode, won't crack on impact, and shrugs off knocks that would damage fibreglass.

The trade-off is weight and aesthetics. Stainless sits heavier in the tub, reducing payload headroom. It also doesn't paint-match unless powder-coated, so it looks like a work unit rather than a factory fitment.

Aluminium

The aluminium canopy sits in between — lighter than stainless, stronger than fibreglass, and available for the N80 SR5 at $2,600 AUD. It's the preferred option for fleet buyers and tradies who want corrosion resistance with a lighter load penalty than steel. Aluminium also extrudes well into structural shapes, so frames and door channels are inherently stiffer than equivalent fibreglass mouldings.

The aluminium finish is typically a mill finish or powder coat — not factory colour-matched the way fibreglass gel-coat is.

Force Pro Hilux Canopy — Full Feature Breakdown

The Force Pro fibreglass canopy is UniUte's flagship product for the N80 Hilux and the one most buyers end up choosing. Here's what you get:

Fibreglass shell with premium gel-coat finish. Moulded to match the Hilux's body lines exactly — not a generic shell trimmed to fit, but a vehicle-specific profile that sits flush against the cab and tub rails.

Factory paint colour-match. Available in the Hilux's standard colour range, including Glacier White (#040). The canopy is finished to the same depth of colour as the factory panels, so the result is a clean, integrated look rather than a tacked-on afterthought.

Lockable side doors. Both sides open independently with a key, giving direct access to either side of the tub without dropping the tailgate. This is the main practical advantage over a lid — loading and unloading from a footpath or worksite is faster and doesn't require walking to the rear of the vehicle.

Full-perimeter rubber seals. Watertight and dust-proof when closed. The seal is a key quality differentiator between budget canopies and a product like the Force Pro — cheap canopies let dust in at the front corners and water in at the tailgate junction.

Aluminium roof rails rated to 100 kg (dynamic). Ready for a roof rack, bike carriers, or an awning bracket without any additional modifications.

Tinted safety glass throughout. Tempered, tinted glazing on the side windows and rear door reduces UV intrusion, deters casual theft by limiting visibility into the tub, and meets Australian ADR standards for safety glass.

Integrated LED brake light. Meets Australian road rules requiring a high-mounted stop lamp. Wired into the Hilux's brake circuit during installation.

Rotary air vents. Passive ventilation prevents heat and moisture build-up inside the canopy — important when transporting food, chemical products, or any cargo affected by temperature.

Central locking on rear door. The rear tailgate and side door locks can be keyed alike with the vehicle, or operated on a separate key. Options for electronic central locking are available as an upgrade.

LED interior lighting (optional). Strips mounted inside the canopy ceiling make loading and unloading at night practical without a head torch.

Drill-free and drill installation kits available. The canopy can be secured with rail clamps to the tub lip — no holes drilled in the tub. A drill-mount option is also available for permanent fitment.

Hilux Tray-and-Canopy Combos — for Tradies and Tourers

The Hilux dual cab is sold as a cab-chassis variant as well as the standard tub. Cab-chassis buyers — common in trades, agriculture, and emergency services — often specify a flat tray plus a canopy as a combined load platform.

A typical Hilux tray-and-canopy setup on the N80 platform uses a flat aluminium tray (usually 1,800–2,000 mm in length for the dual cab) with side skirts and headboard, then a custom-height canopy mounted to the tray rails rather than the factory tub. The result is a higher-floor load area, better ground clearance underneath for water crossing, and a modular setup that lets the canopy be removed and reused if the tray is swapped.

For tradies, the most popular configuration pairs the tray with gullwing toolbox doors on both sides and a lockable canopy above for larger items — plumbing supplies, electrical reels, camping gear. This keeps the most-needed tools at hip height on the sides and less-accessed items in the enclosed upper section.

For touring, a hilux dual cab tray setup with a canopy is often paired with a ute drawer system inside the canopy, a sliding tray at the rear for easier fridge access, and a roof rack above for recovery gear or a rooftop tent.

If you're staying with the factory tub rather than converting to cab-chassis, you can replicate most of this functionality with the Force Pro canopy plus a drawer system inside. UniUte's ute drawers are designed to mount to the tub floor beneath the canopy and slide out through the tailgate, giving full access to gear at the back without climbing in.

What It Costs — Real Prices and Fitment Times

UniUte's Hilux canopy pricing is straightforward:

All prices are in Australian dollars and include the canopy unit. Fitment is separate and varies by workshop and region — budget approximately $200–$400 for a professional installation. Most automotive accessory shops can fit a fibreglass canopy in a single day (half a day is typical for an experienced fitter). If you're removing a factory sports bar first, add an extra hour.

UniUte ships Australia-wide, with delivery times depending on stock status. Some canopies are backordered; check the product page for current lead times before ordering.

Hilux Canopy Compatibility Checklist

Before ordering, work through this list to avoid fitment problems:

Confirm your generation. N70 (2005–2014) and N80 (2015–present) canopies are not interchangeable. Check the compliance plate in the door jamb if you're unsure of the build year.

Check your tub dimensions. The N80 dual-cab tub is 1,570 mm long, 1,645 mm wide, and approximately 495 mm deep. If your Hilux has a non-standard tub liner or aftermarket tub extension, measure before ordering.

Sports bar. The factory sports bar on SR5 and Rogue variants must be removed before most canopies can be fitted. It's bolted to the tub floor with 8 bolts and comes off cleanly — keep it if you want to refit it later. The Rugged X's external roll bar configuration may require different treatment; confirm with the supplier.

Factory tonneau cover. The factory hard or soft tonneau simply unclips and is set aside. It does not need to be cut or modified. Store it in case you sell the canopy separately later.

Tub liner. A factory or aftermarket tub liner is compatible with most canopy installations, but the front rail clamps may require slight trimming of the liner's top edge. Check with your installer before cutting.

Accessories under the canopy. Ute drawers, sliding trays, and tub mats all fit under the Force Pro canopy without modification. Roof racks and tub ladder racks mount to the canopy's roof rails.

Side steps. If you're adding side steps, confirm they don't interfere with the canopy's lower door seal when open. Most universal-fit side steps clear without issue on the N80.

Common Hilux Canopy Mistakes to Avoid

1. Ordering a generic canopy instead of a vehicle-specific mould.
Off-the-shelf canopies labelled as "suits most dual cabs" won't seal correctly against the Hilux tub profile. The gaps at the front corners and along the tub rail junction will let in dust and water. A canopy moulded specifically for the N80 (like the Force Pro) uses the exact tub geometry and seals properly from day one.

2. Not removing the sports bar before delivery.
A number of buyers order the canopy before confirming the sports bar is off the vehicle. The sports bar occupies the same space the canopy's front rail needs to sit. Having it off before the canopy arrives saves the fitter time and saves you a rebooking fee.

3. Ignoring GVM when combining a canopy with other accessories.
The N80 Hilux has a GVM of 3,200–3,350 kg depending on variant. Add a fibreglass canopy (approx. 65–80 kg), a drawer system (approx. 40–60 kg), a roof rack and gear, a bull bar, and a full fuel load, and it's easy to approach or exceed the limit. Calculate your fitted weight before committing to a full accessories package.

4. Choosing a colour without ordering a factory-matched chip.
Hilux colour codes vary between model years and between trim levels. Glacier White #040 on a 2016 SR5 may be a slightly different formulation to the same code on a 2023 GR Sport. Always provide your vehicle's colour code and year to the supplier so the gel-coat is mixed to the correct specification. A near-miss on white is obvious in direct sunlight.

5. Fitting the canopy without wiring the brake light.
The integrated LED brake light in the Force Pro must be wired into the vehicle's brake circuit to be legal on Australian roads. Some DIY installers skip this step or leave it connected only to running lights. A roadworthy inspection will pick this up.

Frequently Asked Questions

How much does a Hilux canopy cost in Australia?
Expect to pay between $3,000 and $3,800 AUD for a quality fibreglass canopy from a reputable supplier. UniUte's Force Pro for the N80 SR5 is priced at $3,800 AUD, with the N70 SR Workmate canopy available from $3,000. Aluminium options start at $2,600. Add $200–$400 for professional fitment.

How long does fitment take?
An experienced fitter can install a Hilux canopy in half a day (3–4 hours), including sports bar removal and brake light wiring. If you're also fitting drawers or a roof rack at the same time, budget a full day for the complete setup.

How much weight does a canopy add?
A fibreglass dual-cab canopy for the N80 typically weighs between 65 kg and 85 kg depending on the specification. The Force Pro falls in this range. A stainless steel canopy adds more — typically 110–130 kg. Account for this when calculating your payload and GVM.

Can I fit a roof rack to a Hilux canopy?
Yes. The Force Pro canopy comes with aluminium roof rails rated to 100 kg dynamic load. A roof rack bolts directly to these rails. You can then carry a rooftop tent, kayak, surfboard, or ladder system above the canopy.

Can I remove the canopy if I need to?
Yes. Canopies are bolted to the tub rails — they are not permanently attached. A two-person team can remove a fibreglass canopy in under an hour with basic tools. This is one advantage over a fitted service body, which is more involved to remove. If the canopy has been fitted with a drill-mount kit rather than rail clamps, there will be holes in the tub rail that need plugging when removed.

Does fitting a canopy affect Toyota's factory warranty?
Adding an aftermarket canopy does not void the Toyota factory warranty on unrelated components. Under Australian Consumer Law, a manufacturer can only decline a warranty claim if the aftermarket modification directly caused the failure in question. A canopy cannot cause an engine, transmission, or suspension fault. However, any electrical faults arising from the canopy's wiring (e.g., a short from improper brake light installation) would not be covered by Toyota. Use a qualified installer to ensure the wiring is done correctly.

Does the canopy fit the Hilux Rogue and GR Sport?
The N80 tub dimensions are consistent across all grades — SR, SR5, Rogue, Rugged X, and GR Sport all share the same dual-cab tub profile. The canopy fits all of them. The difference is in the sports bar or roll bar configuration on some grades, which needs to be removed or adapted before fitment. Confirm with UniUte if you have a Rogue or Rugged X, as the external equipment on these grades can differ.

Next Step — Get Your Hilux Canopy

The Force Pro Hilux canopy is in stock and ships Australia-wide. If you're fitting out a complete setup, pair it with a ute drawer system and roof rack for a fully functional work or touring rig. For a different configuration — aluminium for a fleet vehicle, stainless for a heavy-use tradie setup — browse the full ute canopy range or the aluminium canopy collection.

Questions about fitment on your specific Hilux variant? Contact the team at UniUte with your build year and colour code and they'll confirm compatibility before you order.
