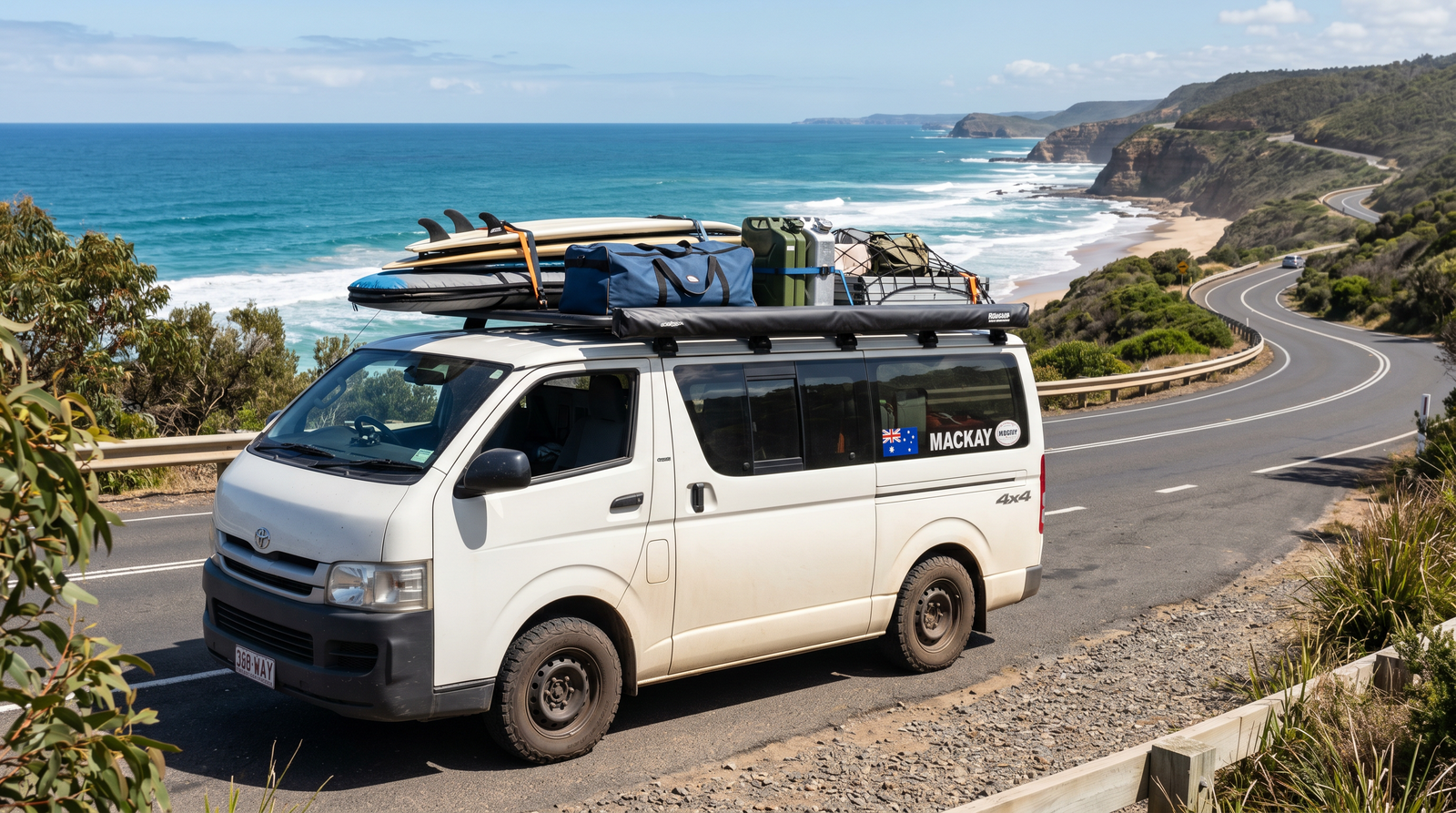

Toyota HiAce Roof Rack Guide — 200 Series & 300 Series Options
The Toyota HiAce is one of Australia's most popular commercial and lifestyle vans, and for good reason. Whether you're a tradie hauling ladders across Sydney's suburbs, a surfer chasing swells up the coast, or a weekend adventurer loading up the roof for a camping run into the bush, a quality roof rack transforms the HiAce from a capable van into a genuinely versatile workhorse.
But not all HiAce roof racks are created equal. The 200 series and the newer 300 series have different roof profiles, mounting points, and dimensions — and the wrong rack for your build will either not fit, compromise your load rating, or leave money on the table by underutilising your van's carrying potential. This guide covers everything you need to know about Toyota HiAce roof racks, from choosing between a platform and crossbars to understanding load limits and pairing your rack with the right HiAce rear ladder.
Toyota HiAce 200 Series vs 300 Series — What's the Difference?
Understanding which generation you own is the first step to choosing the right roof rack setup. The two series are mechanically and dimensionally different enough that accessories are not interchangeable.
HiAce 200 Series (H200) — 2005 to 2019
The fifth-generation HiAce, known as the H200 or 200 series, was sold in Australia from March 2005 through to May 2019. It became one of the most common commercial vans in the country during that 14-year production run, and there are still enormous numbers of them on Australian roads today.
Key dimensions for the 200 series in Australia:
- LWB Low Roof (standard van): 1,930 mm overall height, approximately 1,690–1,880 mm wide depending on variant, 4,570–5,380 mm in length
- SLWB High Roof: approximately 2,285 mm overall height, up to 5,380 mm in length
- Roof width available for racking: approximately 1,465–1,500 mm between gutters (low roof LWB)
- Roof mounting: traditional rain gutters run along each side of the roof — these are the primary mounting point for 200 series roof racks
The rain gutters are a defining feature of the 200 series. They allow for gutter-clamp style feet, which is the most common mounting method for HiAce 200 series roof racks. The low roof LWB is by far the most popular platform for aftermarket racking.
Toyota's stated dynamic roof load for the 200 series (while driving) is typically around 100–120 kg depending on the variant. Always verify your specific vehicle's limit in the owner's manual before loading up — this is the legal and structural limit you must not exceed while the van is moving.
HiAce 300 Series (H300) — 2019 Onwards
The sixth-generation HiAce, the H300, launched in Australia on 28 May 2019. It represented a significant redesign from the outgoing model and introduced important differences that affect roof rack selection.
Key changes relevant to racking:
- No traditional rain gutters: The 300 series moved to a flush, modern roofline. This means gutter-clamp style feet used on the 200 series will not work on the 300 series.
- Factory mounting points: The H300 uses dedicated factory hardware positions (8 mm fixing points in the roof) as the basis for roof rack attachment. Racks are secured into these points and sealed with silicone for weather resistance.
- Dimensions (LWB Van): 1,990 mm height, 1,950 mm wide, 5,265 mm long
- Dimensions (SLWB High Roof): 2,280 mm height, 1,950 mm wide, 5,915 mm long
- Roof load rating: typically 120–150 kg depending on the rack and variant — always check your owner's manual
- Engine options: 2.8L turbodiesel 1GD-FTV or 3.5L V6 petrol, 6-speed auto (or 6-speed manual on LWB diesel)
The upshot: if you're shopping for HiAce 300 series roof rack options, you need a rack specifically designed for factory mounting points — not a gutter-mount system designed for the 200 series. The two are not compatible.
HiAce Roof Rack Types — Platform vs Crossbars
Once you've confirmed your series, the next decision is the style of rack. There are two main types used on HiAce vans in Australia, and each suits different use cases.
Roof Rack Platform (Flat Tray)
A roof rack platform — sometimes called a roof rack platform HiAce setup by those specifically building out the van — is a full flat tray that spans most of the roof surface. Think of it as a deck on top of your van. For the 200 series LWB low roof, a quality platform typically measures around 2,728 mm × 1,465 mm — which is a substantial amount of load space sitting up top.
Platforms are ideal for:
- Tradies carrying long materials like pipes, conduit, and aluminium extrusions
- Campers who want a solid base for roof-top tents, solar panels, or jerry can holders
- Surfers or kayakers loading boards across the full width of the roof
- Anyone who needs maximum cargo area and a fully enclosed load surface
UniUte's Black Aluminium Roof Rack Platform for Toyota HiAce 200 Series 2005–2019 is purpose-built for the low roof LWB with rain gutters. It's constructed from high-quality aluminium with a black powder-coat finish for corrosion resistance — important given the Australian coastal and UV environment — and mounts directly to the rain gutters for a secure, stable fit. At 2,728 × 1,465 mm, it offers serious load space for both commercial and recreational use.
Crossbar Systems (Bar Racks)
Crossbar or bar rack systems use two to four aluminium or steel bars running across the width of the roof, held by feet that clamp to the gutters (200 series) or bolt to factory mounting points (300 series). They offer less total surface area than a platform but are lighter, allow for better airflow, and can be combined with accessories like kayak saddles, surfboard pads, ladder carriers, and cargo baskets.
Crossbars suit:
- Surfers and kayakers using specific cradles or J-mounts
- Tradespeople carrying a single ladder with a dedicated ladder carrier attachment
- Van lifers who want minimal roof weight and the flexibility to swap accessories
- Owners who want a cleaner, lower-profile look
For the 200 series with rain gutters, gutter-mount feet are the standard. The 300 series requires factory-point mount systems designed specifically for the H300's roof hardware. Bars typically run 1,550–1,600 mm in length across the HiAce roof.
Why You Need a HiAce Rear Ladder
A roof rack without a way to safely access it is a frustration waiting to happen. Every Toyota HiAce ladder setup should treat roof access as part of the overall system — not an afterthought. The HiAce roof sits at nearly two metres off the ground on a standard low roof — trying to clamber up via the tyre or rear bumper is both undignified and a genuine injury risk.
A dedicated HiAce rear ladder solves this completely. UniUte's Black Rear Ladder for Toyota HiAce 200 Series 2005–2019 is precision-engineered to fit the 200 series van without permanent modifications to the body. It features an ergonomic rung design for safe and comfortable climbing, a sleek black powder-coat finish that complements the van's look, and it's built to handle the demands of daily commercial use as well as weekend adventures.
Key benefits of a dedicated HiAce ladder:
- Safety: Stable, purpose-built rungs prevent slips when loading gear — especially important on wet mornings or when you're carrying bulky items
- Efficiency: For tradies accessing rooftop cargo multiple times a day, a proper ladder saves significant time and effort over improvised climbing methods
- Protection: Mounting points are designed not to damage the van's body or paint
- Cargo security: Pairs naturally with bungee and track systems to allow you to secure and retrieve rooftop gear in one smooth workflow
If you're running a roof rack platform, a rear ladder is not optional — it's a necessary companion. Budget for both from the outset.
Load Ratings — What You Actually Need to Know
Load ratings are one of the most misunderstood aspects of roof rack selection, and getting this wrong has real safety and legal consequences.
There are two ratings to understand:
- The vehicle's roof load rating: Toyota specifies a dynamic load rating for the HiAce roof — this is the maximum weight you can carry while the vehicle is in motion. For most 200 and 300 series variants this is in the 100–120 kg range, though some variants allow up to 150 kg when using compliant mounting systems. This takes legal precedence over any rack manufacturer's rating.
- The rack's own load rating: A quality aluminium platform rack may be structurally capable of carrying more than 150 kg, but you must not exceed the vehicle's rated limit regardless. The rack's rating tells you it won't fail structurally — the vehicle rating tells you the legal and safe upper bound.
Practical rules of thumb:
- Always subtract the weight of the rack itself from the available load. A 15–20 kg aluminium platform leaves 80–100 kg for actual cargo on a 100 kg vehicle limit.
- Distribute weight as evenly as possible across the rack surface. Concentrated loads in one corner put more stress on individual mounting points.
- Reduce your speed when carrying heavy rooftop loads — the HiAce's centre of gravity rises with roof cargo, affecting handling especially in crosswinds or tight corners.
- Secure everything with quality tie-down straps rated for the weight involved. Unsecured rooftop loads are a road safety issue, full stop.
Who Uses HiAce Roof Racks in Australia?
The HiAce's roof rack utility stretches across a wide range of Australian lifestyles and industries. Here's how different users approach their setups:
Tradies and Commercial Operators
The HiAce has been Australia's go-to tradie van for decades, and roof racks are almost standard equipment for many trades. Electricians, plumbers, HVAC technicians, and builders use roof platforms to carry conduit, pipe, cable trays, duct sections, and other long materials that simply won't fit inside the van.
For tradies, the platform rack combined with a rear ladder forms a complete system. Add a set of pipe or conduit holders, and your rooftop becomes an organised extension of your workshop. If you also run a ute or dual-cab as part of a fleet, check out UniUte's tub ladder rack range — the same practical thinking applies to ute tub setups.
Campers and Van Lifers
The HiAce is one of the most popular campervan base vehicles in Australia, and roof racks play a central role in camper builds. Common applications include:
- Solar panels: A platform provides a solid, flat base for mounting 100W–400W solar arrays. The large surface area of an LWB platform comfortably accommodates two 200W panels side by side.
- Roof-top tents: A structurally rated platform can support RTT setups, effectively turning the HiAce into a rooftop camping rig.
- Cargo and gear storage: Dry bags, pelican cases, and cargo nets mounted to a platform keep the van's interior free for sleeping and living.
For campers who also run a ute in their setup, UniUte's range of ute canopies and ute sliding trays complement the HiAce perfectly for multi-vehicle overland setups.
Surfers
The HiAce has cult status in Australian surf culture. Its combination of van space (for sleeping and gear storage) and roof capacity (for boards) makes it the ultimate surf trip vehicle. A crossbar system with surfboard pads can handle two to four boards on the roof while the interior holds wetsuits, boardbags, and everything else a surf trip demands.
For surf trips where you want to keep boards on the roof but need an alternative when space is tight, consider the Universal Tow Bar T-Rack — a versatile 160 kg-rated tow bar-mounted rack that handles boards, kayaks, and long gear without touching the roofline at all.
Kayakers and Paddlers
Kayaks and canoes are awkward to transport, and the HiAce's roof is an ideal solution. A platform or crossbar system with appropriate kayak cradles or J-mounts allows a full-size sea kayak or two recreational kayaks to travel safely on the roof. The van's height makes loading a two-person job — which is another reason the rear ladder earns its keep, letting one person guide the boat from below while the other secures it from above.
The Universal Tow Bar T-Rack is also worth considering for paddlers who regularly use a separate tow vehicle for their kayak and want a flexible, 160 kg-rated alternative to roof mounting.
Gutter Mount vs Factory Mount — Getting the Fit Right
The mount type is the single most important compatibility factor when selecting a HiAce van roof rack. To summarise:
| Feature | 200 Series (H200, 2005–2019) | 300 Series (H300, 2019–present) |
|---|---|---|
| Roof mounting | Rain gutter clamps | Factory hardware points (8 mm) |
| Rack compatibility | Gutter-mount feet required | Factory-point mount feet required |
| Roof width (LWB) | ~1,465 mm between gutters | ~1,550 mm usable width |
| Roof length (LWB) | ~2,728 mm usable platform area | ~3,000 mm usable platform area |
| Typical dynamic load rating | 100–120 kg | 120–150 kg (system dependent) |
Choosing the right mount for HiAce van roof racks is critical and non-negotiable. Do not attempt to fit a 200 series gutter-mount rack to a 300 series van — the gutters simply aren't there. Equally, a 300 series factory-point system won't align correctly on a 200 series roof.
Buying Guide — What to Look for in a HiAce Roof Rack
When evaluating a hiace roof rack purchase, run through the following checklist:
1. Confirm Your Series and Variant
H200 (2005–2019) or H300 (2019–present)? LWB or SLWB? Low roof or high roof? These details determine which products are compatible. Check your compliance plate or the vehicle's registration documents if you're unsure of the exact build date.
2. Choose Platform or Bars Based on Your Primary Use
If you're a tradie carrying long materials daily, a full platform is the right choice — it's the most secure and versatile option. If you're a weekend surfer or kayaker who occasionally needs a bar to throw boards on, a two-bar or three-bar system may be sufficient and lighter.
3. Check the Structural Rating Against Your Vehicle's Roof Rating
A rack rated to carry 200 kg structurally is still limited by your HiAce's roof load rating. Know your vehicle's number from the owner's manual and always subtract the rack's own weight to get your net cargo capacity.
4. Material — Aluminium vs Steel
Aluminium is the preferred material for most Australian applications. It's lighter (critical for keeping within load limits while maximising payload), corrosion-resistant (essential in coastal or tropical environments), and still more than strong enough for commercial use. Steel racks are heavier but may be cheaper — weigh up the weight penalty carefully.
5. Consider the Full System — Rack Plus Ladder
Budget for a HiAce ladder — or a 4WD ladder if you run a 4WD-converted HiAce — at the same time as the rack. Accessing a roof platform without a dedicated ladder is awkward, inefficient, and unsafe. UniUte's Black Rear Ladder for HiAce 200 Series pairs directly with the roof rack platform and installs without permanent modifications to the van.
6. Accessories and Expandability
Check whether the rack is compatible with accessories like conduit holders, pipe carriers, cargo nets, solar panel mounts, or kayak saddles. A quality platform will have standardised mounting channels or rails that accept a wide range of add-ons without drilling.
7. Installation — DIY or Professional?
Most quality HiAce roof rack platforms and bar systems are designed for home installation with basic tools, typically taking 30–90 minutes. Gutter-mount systems on the 200 series are generally the most straightforward — clamp to the gutters, tighten, done. Factory-mount systems on the 300 series require sealing with silicone and more precise alignment, but are still within reach for a careful DIYer. For either series, avoid over-tightening gutter clamps as this can distort the gutter profile over time.
Installation Tips for HiAce Roof Racks
- Clean the gutter or mounting points thoroughly before fitting. Dirt and grit under clamps or feet can cause corrosion and reduce clamping force over time.
- Use a torque wrench if the manufacturer specifies torque values for mounting hardware — guessing torque by feel is a common cause of loose racks on the highway.
- Check fitment after the first 100 km of driving. Vibration can settle clamps and fittings; a quick re-check and re-torque ensures everything stays secure.
- Apply anti-corrosion treatment to steel hardware, particularly in coastal areas. Even stainless fasteners can corrode in prolonged saltwater exposure if not maintained.
- Allow for aerodynamic drag. A full platform rack adds significant wind resistance, especially on the highway. Fit a wind deflector at the leading edge of the platform if available for your system — this reduces drag and fuel consumption meaningfully at highway speeds.
- Re-check cargo security before every trip. Tie-down straps stretch and loosen over time, especially in heat. A five-minute pre-trip check of your roof load could prevent a dangerous road incident.
Putting It All Together
A Toyota HiAce roof rack is one of the highest-value accessories you can add to your van. Whether you're a tradie making it to more jobs without a return trip to the depot, a surfer chasing a long weekend run up the coast, or a camper building out your overland rig, a properly matched rack system massively expands what your HiAce can do.
The key decisions are straightforward: confirm your series (200 or 300), choose a platform for maximum utility or bars for lighter flexibility, pair it with a rear ladder for safe roof access, and stay within your vehicle's roof load rating at all times. Get those four things right and your HiAce will carry more, do more, and work harder for you for years to come.
Browse UniUte's range of purpose-built HiAce roof rack platforms and HiAce rear ladders to get set up with Australian-designed gear built for Australian conditions.
