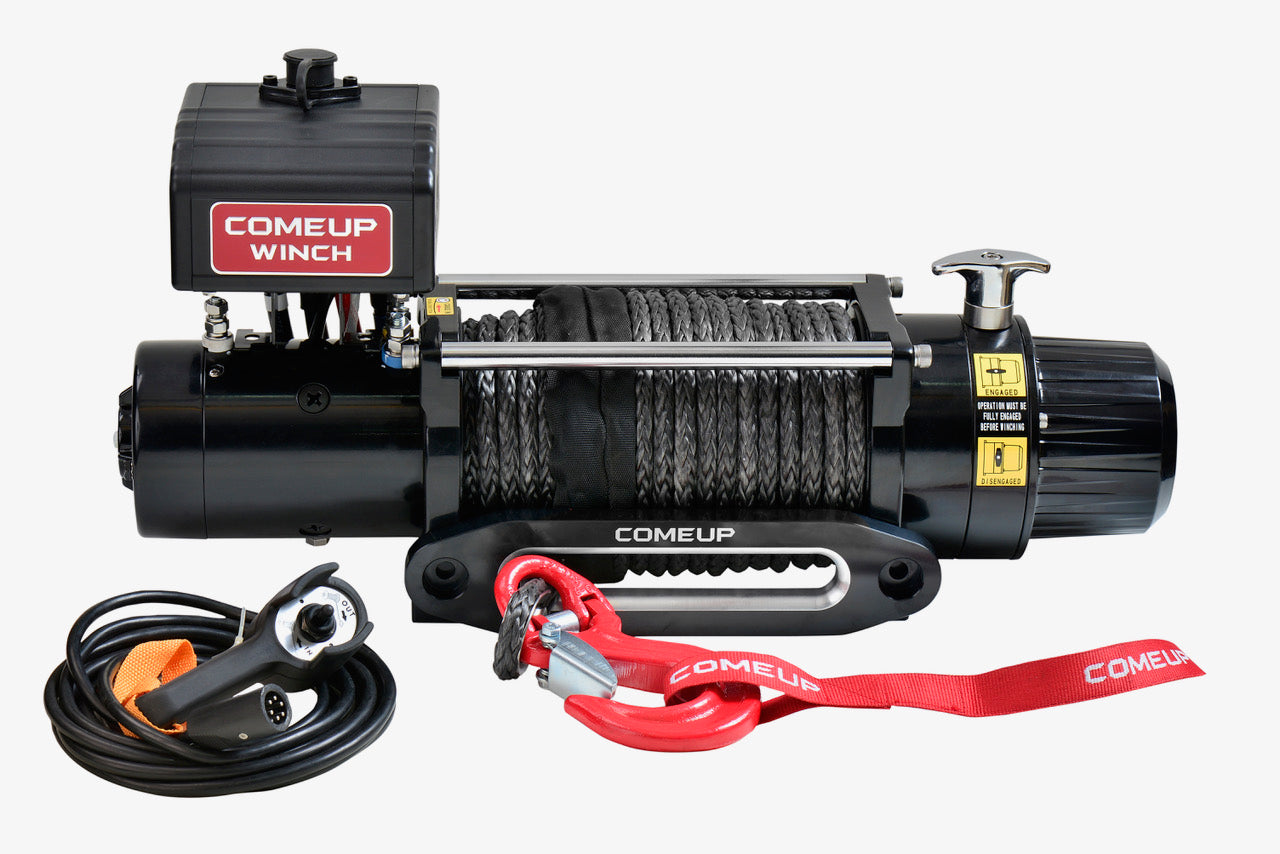

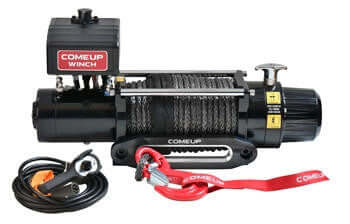

ComeUp Automotive Self-Recovery Winch DV-9s 12V STD
Description
Description
- All sealed high performance motor supplies superior torque output and faster line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the rugged conditions.
- The U.S., Germany, U.K., France, etc patented automatic CBS (Cone Brake Structure) holds firmly in full load and provides easy maintenance. Specific design of brake (CBS) outside the drum is ideally suited to heat-sensitive synthetic rope.
- Heavy duty sealed contactor ensures sound waterproof protection.
- Turn clutch by ergonomic T-handle for rapid rope payout. The equally positioned pin holes make it easily rotate by 40° increments for special in-bumper application.
- Protective thermal sensor LED.
- Part number: PN 859252 (12V) / PN 859262 (24V)
- Rated line pull: 4,082 kg / 9,000 lb single line
-
Motor: 3,430 w / 4.6 hp 12V series wound
1,940 w / 2.6 hp 24V series wound - Gear train: 3-stage planetary 156:1
- Clutch (freespooling): Rotating ring gear
- Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
- Winch construction: Aluminum die cast housings with steel drum
- Drum size: 63.5 x 227 mm (2.5” x 8.9”)
- Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
- Rope type: Synthetic rope
- Rope size: 10 mm x 30.5 m (3/8” x 100’)
- Mounting bolts pattern: 254 x 114 mm (10” x 4.5”)
- Winch weight (including rope) : 27 kg / 59.5 lb
- Gross weight : 33 kg / 72.8 lb
- Box dimension, (L x D x H) : 650 x 195 x 415 mm (25.6" x 7.7" x 16.3")
Line Speed and Amp. Draw (1st layer of rope on the drum):
| Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A | |
| 12V | 24V | ||
| No Load | 13.2 / 43.3 | 55 | 30 |
| 907 / 2,000 | 4.7 / 15.3 | 110 | 65 |
| 1,814 / 4,000 | 3.4 / 11.2 | 200 | 100 |
| 2,722 / 6,000 | 2.8 / 9.1 | 230 | 130 |
| 3,629 / 8,000 | 2.3 / 7.6 | 260 | 170 |
| 4,082 / 9,000 | 2.0 / 6.5 | 350 | 210 |
| Layer of Rope | Pull by Layer, kg / lb | Total Rope on the Drum, m / ft |
| 1st | 4,082 / 9,000 | 5.5 / 18.1 |
| 2nd | 3,316 / 7,310 | 12.5 / 41.0 |
| 3rd | 2,792 / 6,154 | 20.9 / 68.6 |
| 4th | 2,410 / 5,314 | 30.5 / 100 |
Winches are not to be used for the lifting or moving of persons.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 10 wraps from the drum.Warranty
Each new winch is guaranteed against defects in workmanship and material defects for a stipulate period from date of purchase.
*Automotive Winch: Limited lifetime warranty for mechanical components,
One (1) year warranty for electrical components,
SYNTHETIC ROPES ARE NOT INCLUDED UNDER WARRANTY. Dimension, mm/in:
- 9 equally positioned pin holes ensure seamless clutch transmission and make it easily rotate by 40° increments.
Accessory:| Standard Accessories | Option Accessory |
|
|
